Moving morphable components topology optimization approach: Extensions, applications, and prospects
-
摘要: 借助显式几何参数描述结构拓扑构型, 移动可变形组件 (Moving Morphable Components, MMC) 拓扑优化方法具备设计变量少、CAD (Computer Aided Design) 系统的无缝兼容性、拓扑描述与分析模型解耦、易于表示制造相关约束等优势, 可以显著提升结构设计效率, 因而自提出以来便受到广泛关注. 本文系统阐述了MMC方法的核心理论框架及扩展体系: 从初始技术方案中超椭圆方程的结构描述、结构柔顺性目标函数、含体积约束的优化列式、灵敏度分析以及核心技术问题, 到涵盖其几何描述、数值技术以及优化求解的多维度扩展. 在分析理论演进脉络的基础之上, 评述MMC方法在非线性、多材料和应力约束等特定优化技术问题的解决方案, 总结MMC方法在轻量化构件设计、动态性能设计、超材料/超结构设计等领域的多学科交叉应用. 最后, 基于现有研究瓶颈讨论若干重点发展方向, 展望MMC方法在智能计算时代的广阔前景.Abstract: By explicitly parameterizing structural topologies with geometric variables, the Moving Morphable Components (MMC) topology optimization method offers several notable advantages, including a reduced number of design variables, seamless compatibility with Computer-Aided Design (CAD) systems, decoupling between topology description and analysis models, and convenient incorporation of manufacturing-related constraints. These features can significantly enhance the efficiency of structural design, which has attracted widespread attention since the method was first proposed. This review systematically presents the core theoretical framework and extension system of the MMC method. Starting from the initial technical formulation—including structural representation based on super-elliptic equations, compliance-based objective functions, optimization formulations with volume constraints, sensitivity analysis, and key technical issues—it further reviews multidimensional extensions encompassing geometric description, numerical techniques, and optimization solvers. Based on an analysis of the theoretical evolution of the method, this paper also reviews MMC-based solution strategies for specific optimization challenges such as nonlinear behavior, multi-material design, and stress-constrained optimization. In addition, interdisciplinary applications of the MMC method are summarized in areas including lightweight structural design, dynamic performance optimization, and metamaterial/metastructure design. Finally, in view of current research bottlenecks, several important future research directions are discussed, and the broad prospects of the MMC method in the era of intelligent computation are envisioned.
-

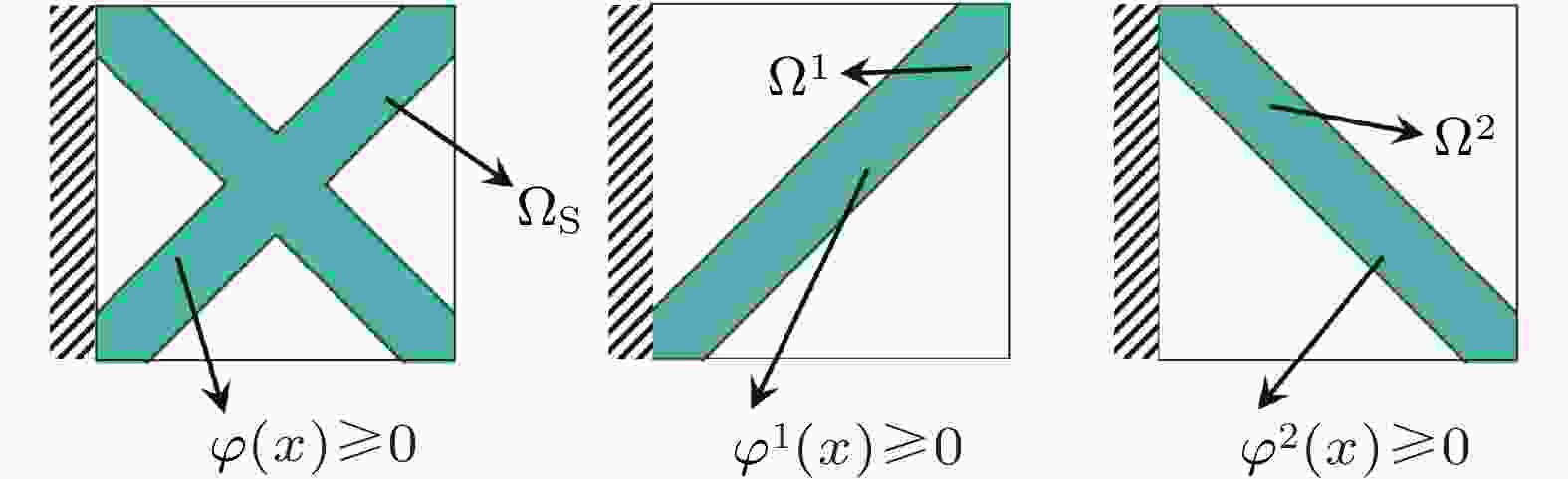

图 2 MMC方法中结构拓扑的几何描述 (Li et al. 2023)

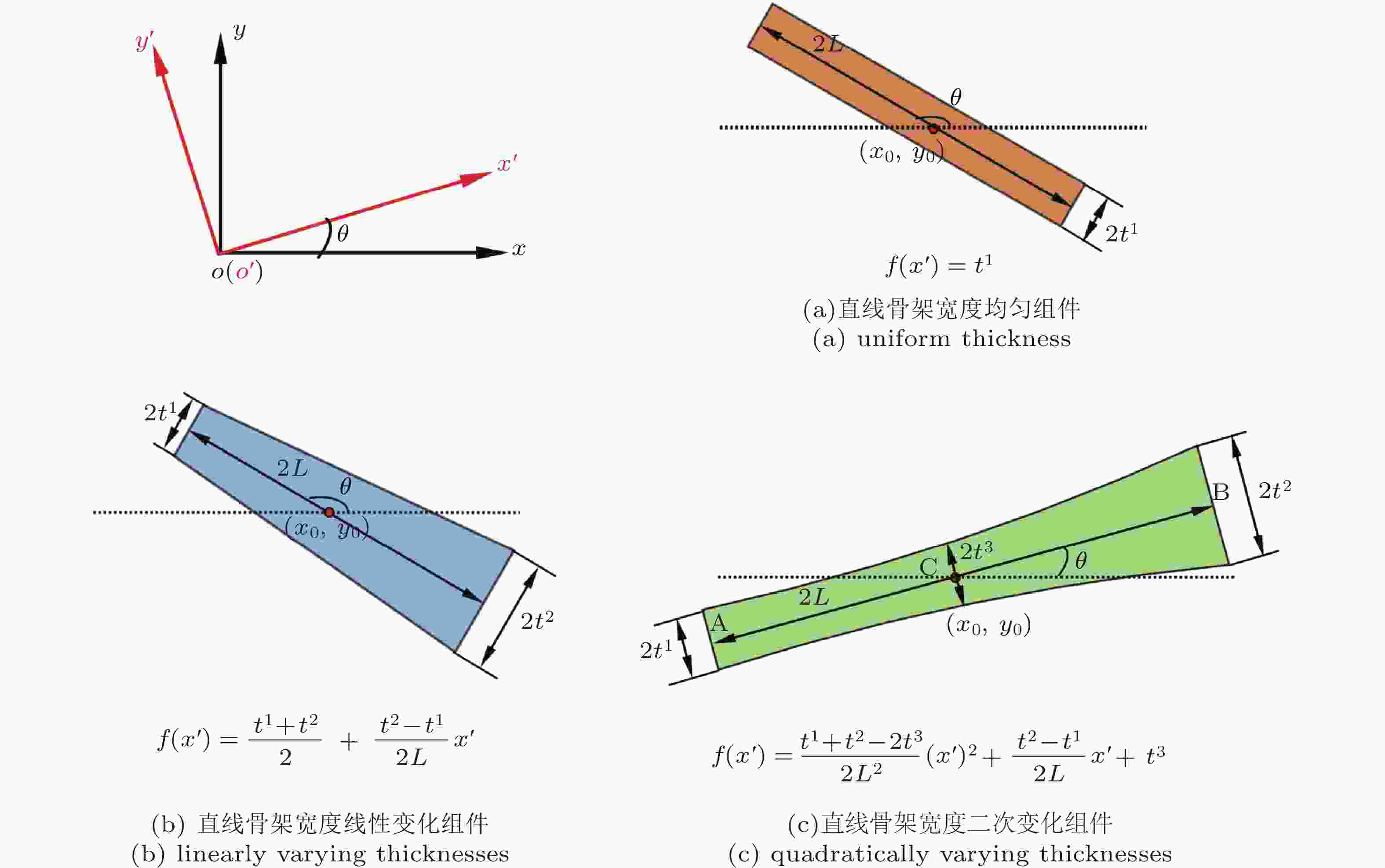

图 3 二维场景中MMC方法的直组件结构形貌 (Zhang et al. 2016b)

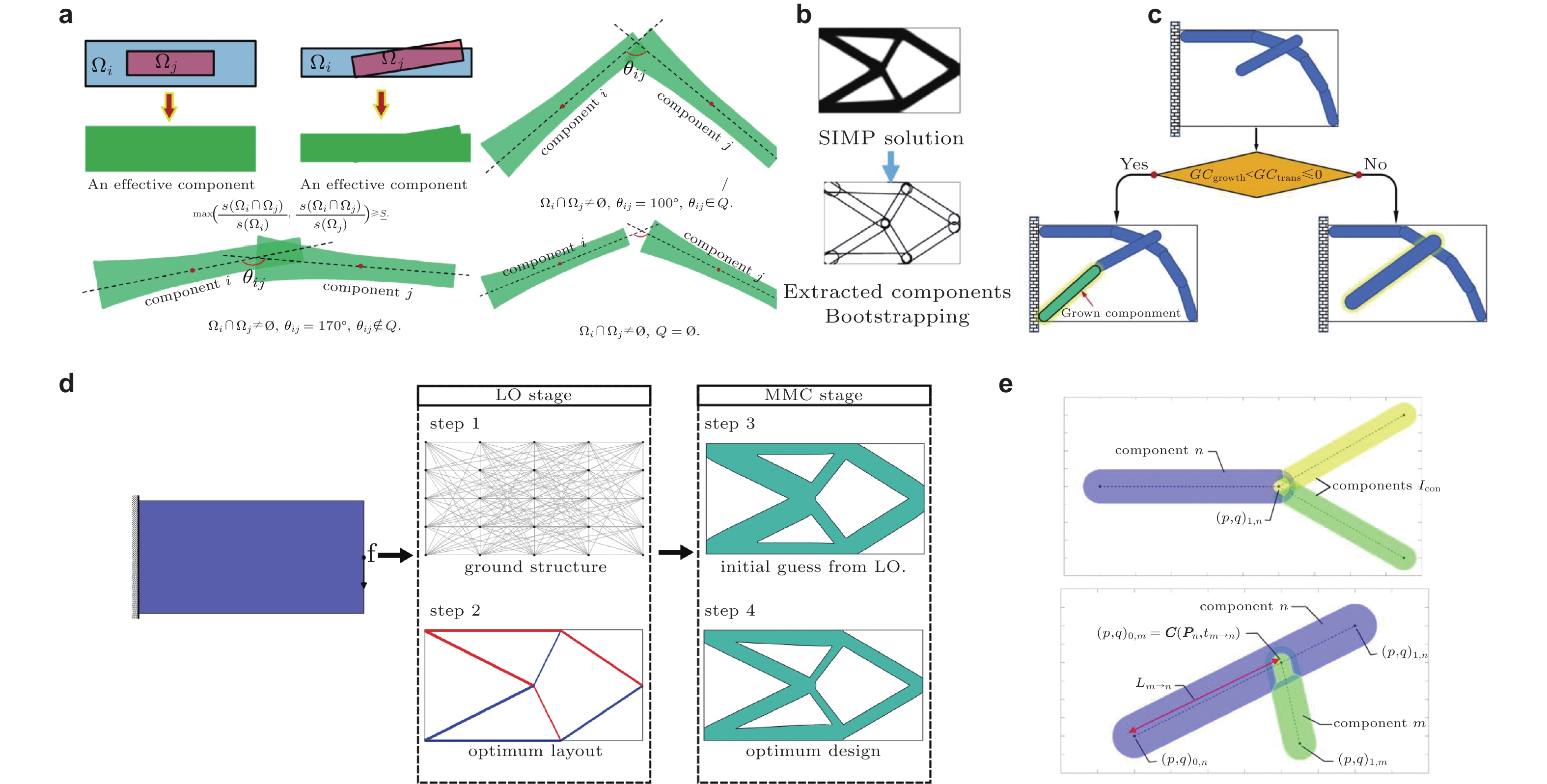

图 4 MMC方法中与组件排布相关的技术进展. (a) 基于有效组件的概念控制结构复杂度 (Zhang et al. 2017c), (b) 基于拔靴法思路的双阶段计算模型 (Weiss et al. 2021), (c) 具有生长机制的MMC方法 (Cui et al. 2022), (d) 基于布局优化设置初始组件排布的双阶段计算模型 (Lotfalian et al. 2025), (e) 基于外在几何约束的MMC方法 (Shannon et al. 2025)

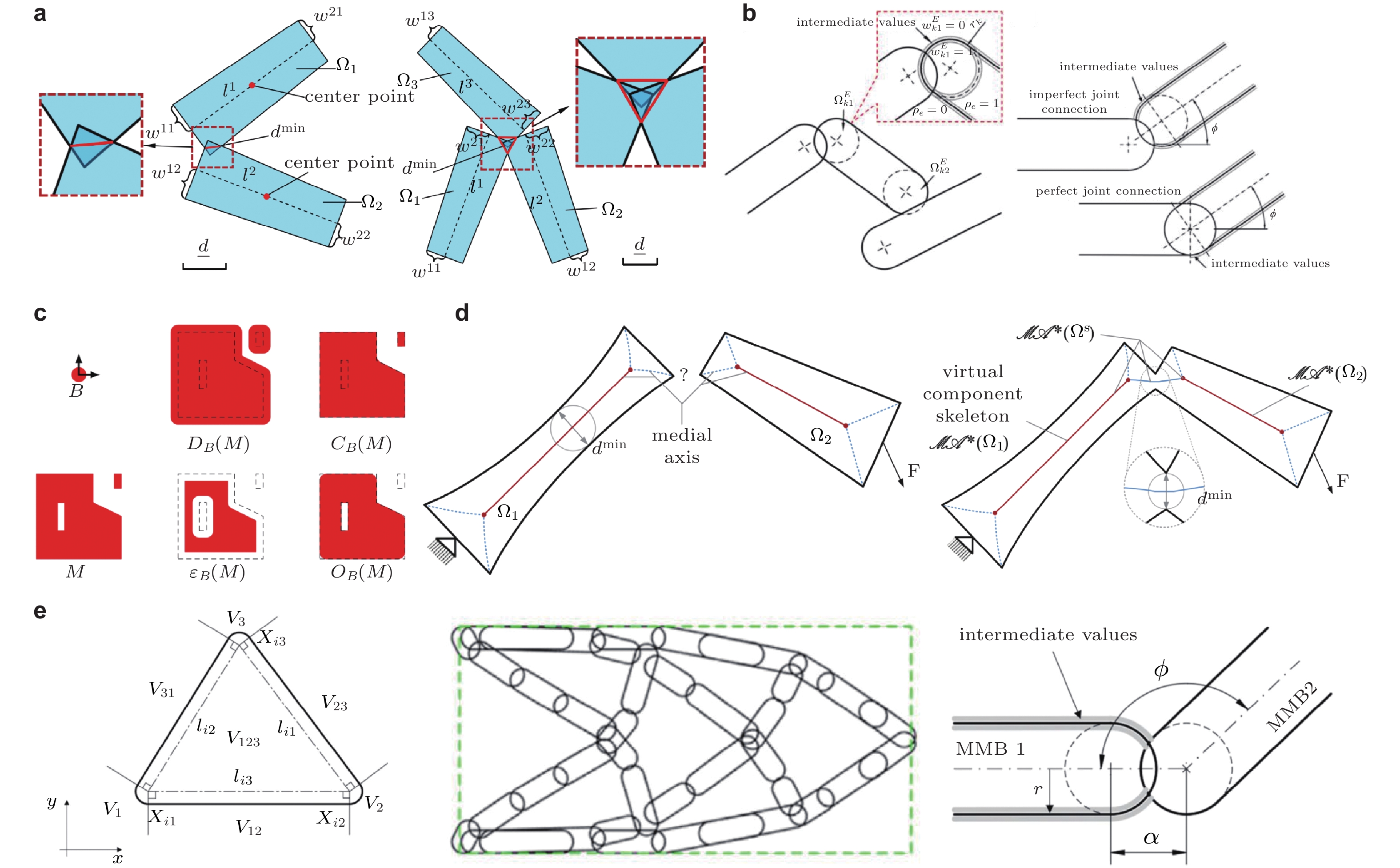

图 5 MMC方法中与尺寸控制相关的技术进展. (a) MMC框架下的最小尺寸控制方法 (Zhang et al. 2016a), (b) 基于半圆形端部条状组件的显式宽度调控策略 (Hoang and Jang, 2017), (c) 引入罚函数的等宽控制 (Niu and Wadbro, 2019), (d) 基于虚拟组件骨架的有效连接状态技术 (Wang et al. 2019), (e) 基于移动可变形片的厚度可控方法 (Nguyen et al. 2020)

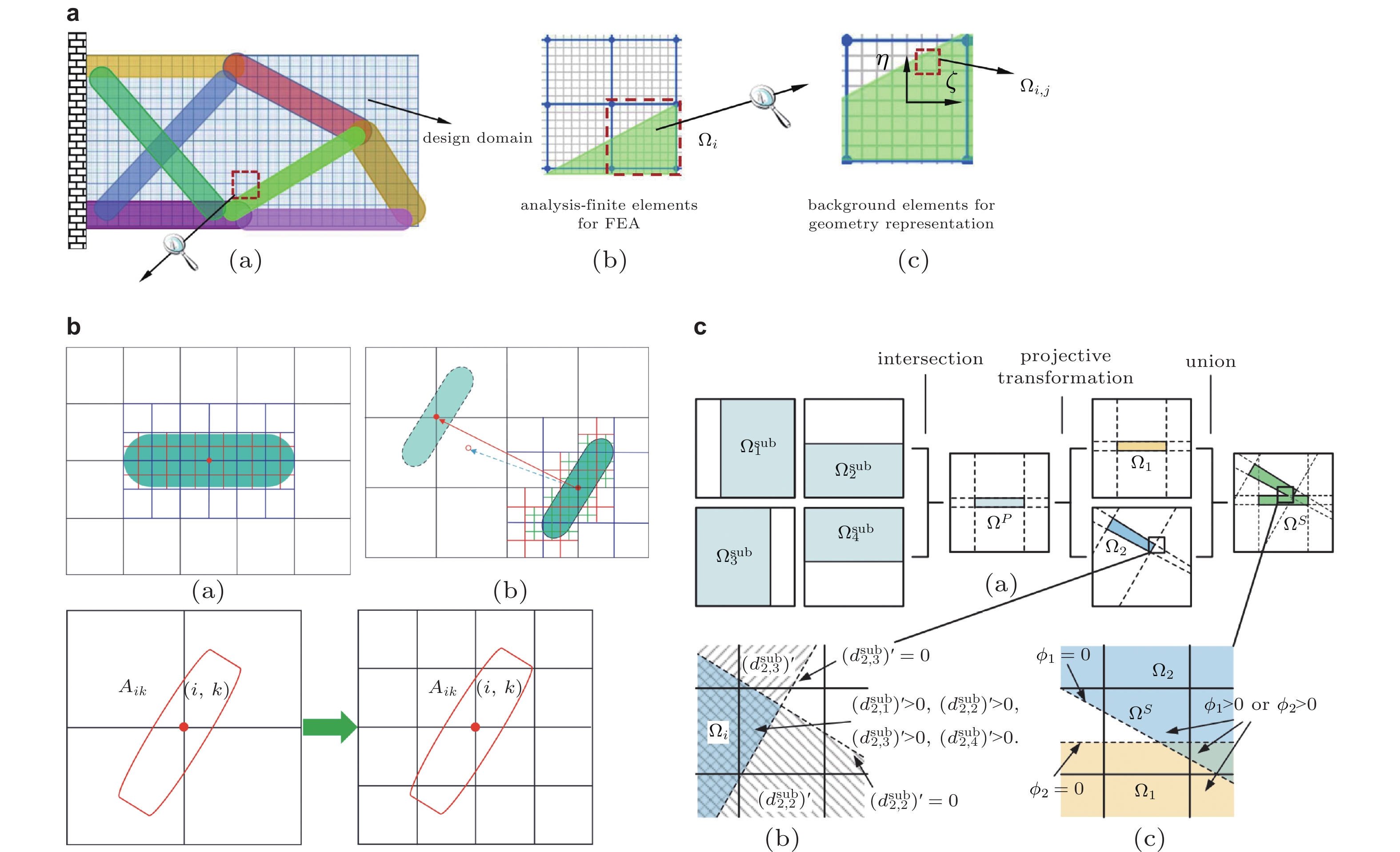

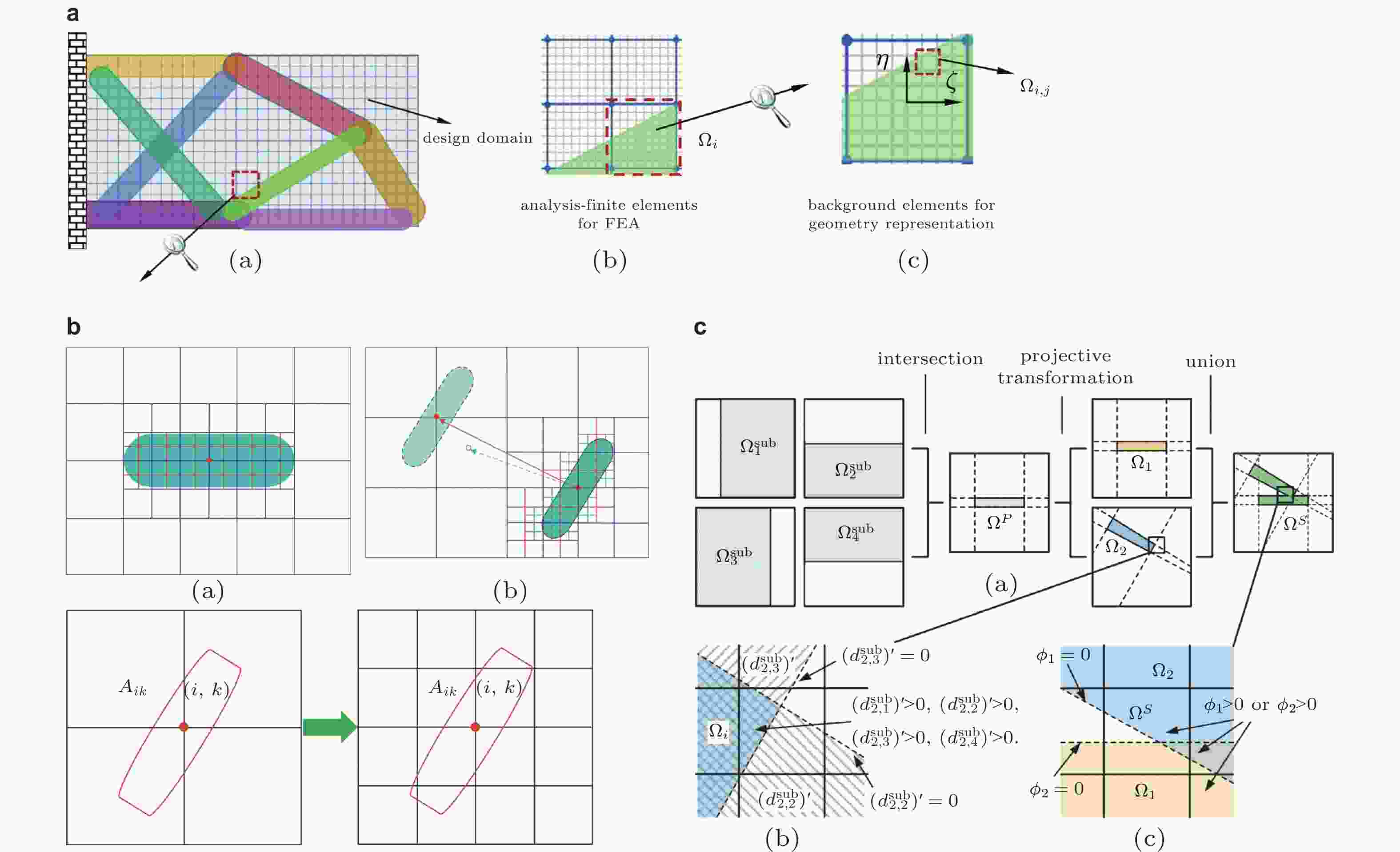

图 6 MMC方法中与计算策略相关的技术进展. (a) 多分辨率求解框架 (Liu C et al. 2018), (b) 多层级网格细分方法 (Lian et al. 2020), (c) 基于投影变换的MMC方法 (Wang et al. 2021)

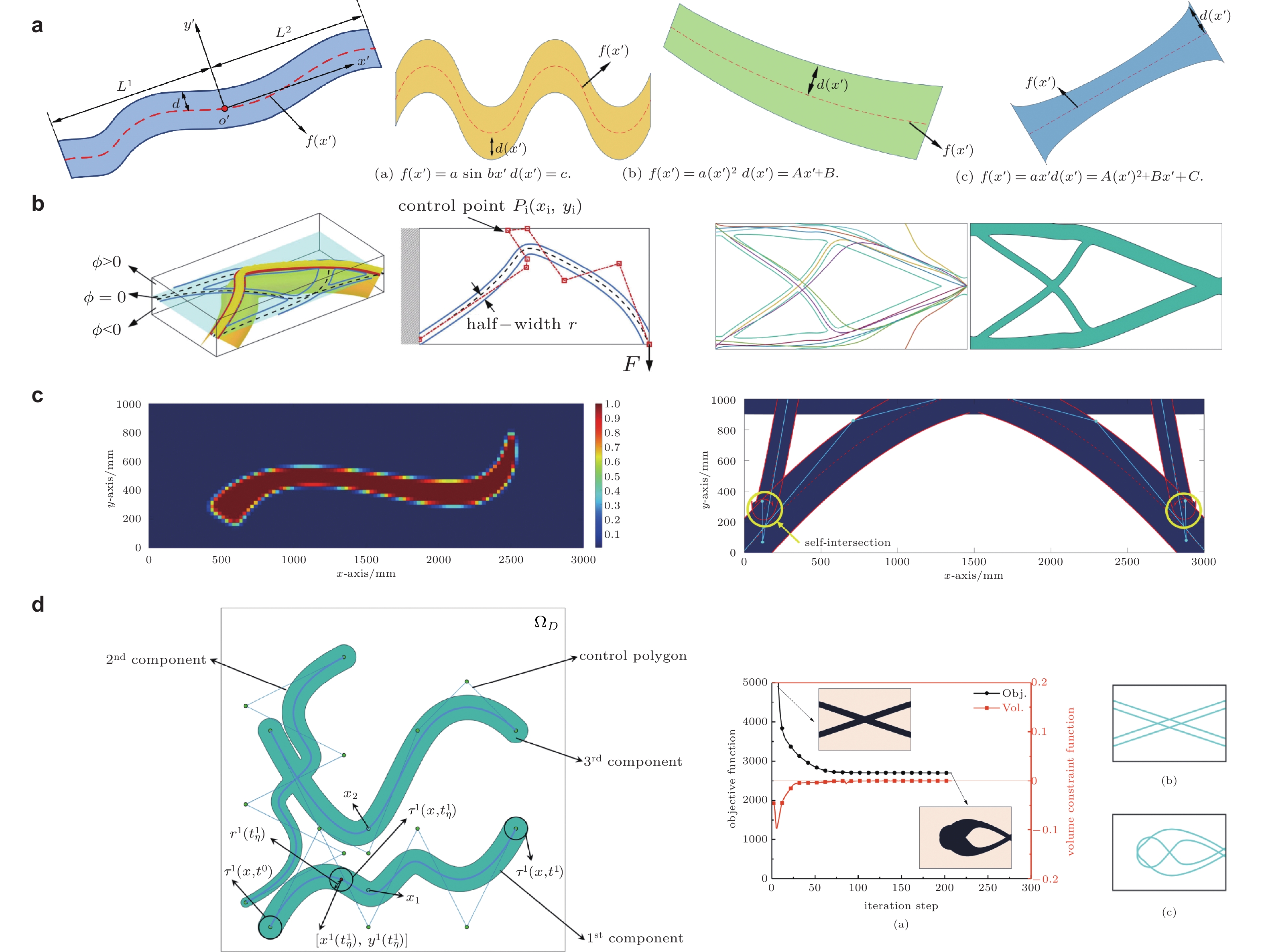

图 7 MMC方法中与组件骨架曲线化相关的几何描述扩展. (a) 组件骨架曲线化扩展方案 (Guo et al. 2016), (b) 移动宽度贝齐尔组件方法 (Zhu et al. 2021a), (c) 广义贝齐尔组件方法 (Shannon et al. 2022), (d) 采用时间序列视角的MMC方法 (Li et al. 2023)

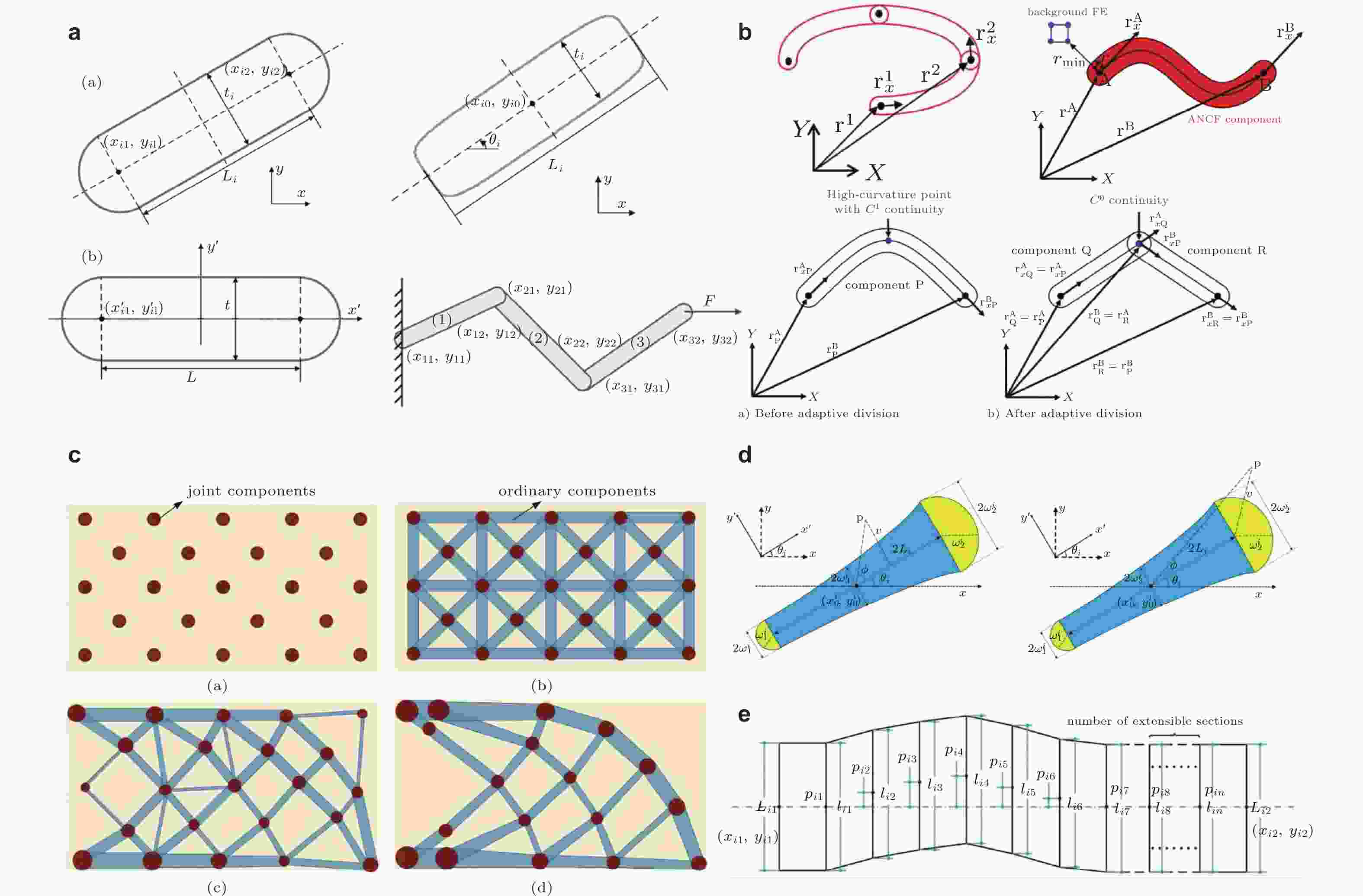

图 8 MMC方法中与组件端部相关的几何描述扩展. (a) 连接变形组件方法 (Deng and Chen, 2016), (b) 绝对节点坐标公式组件方法 (Otsuka et al. 2023), (c) 节点驱动MMC方法 (Xu J et al. 2025), (d) 电阻抗断层成像中的半圆形端部组件 (Liu and Du, 2021), (e) 基于面积公式的组件描述 (Yang and Huang, 2020)

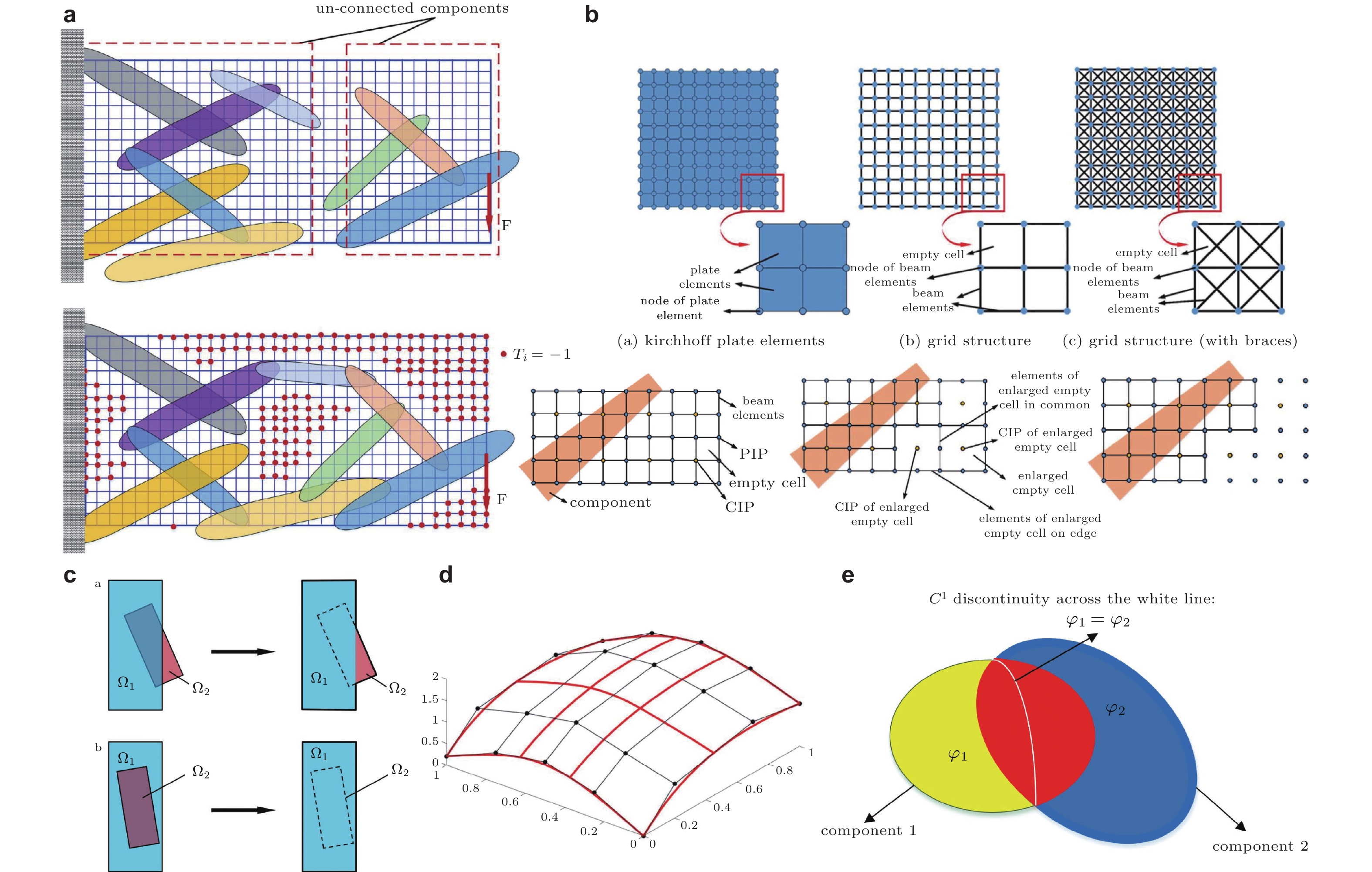

图 9 MMC方法中的结构分析扩展. (a) 自由度移除技术 (Zhang et al. 2018c), (b) 单元自适应修剪技术 (Zhou et al. 2024), (c) 组件隐藏机制 (Zhang et al. 2016a), (d) IGA扩展方案 (Hou et al. 2017), (e) 采用R函数均匀化组件的$ {C}^{1} $不连续区域 (Xie et al. 2020a)

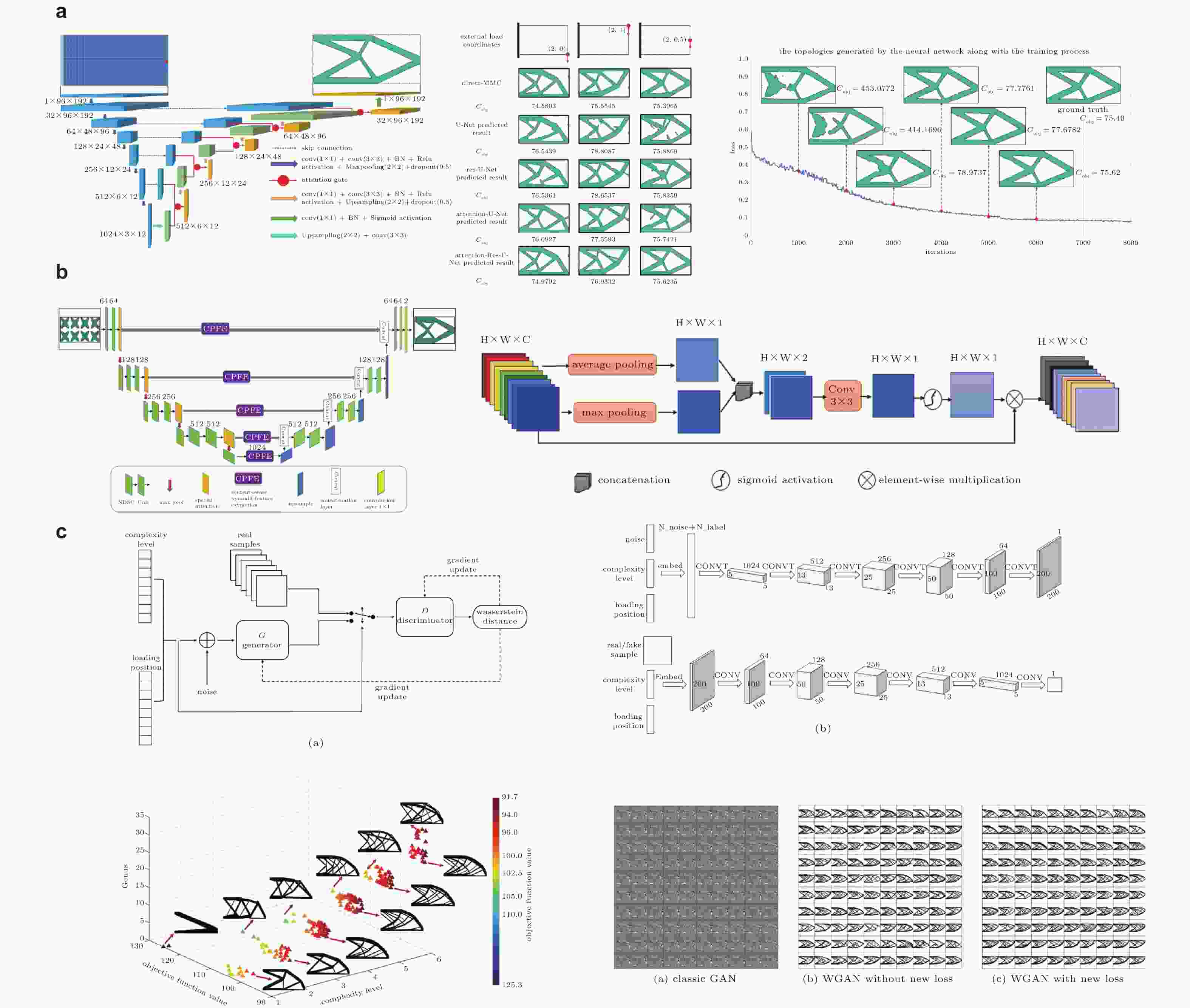

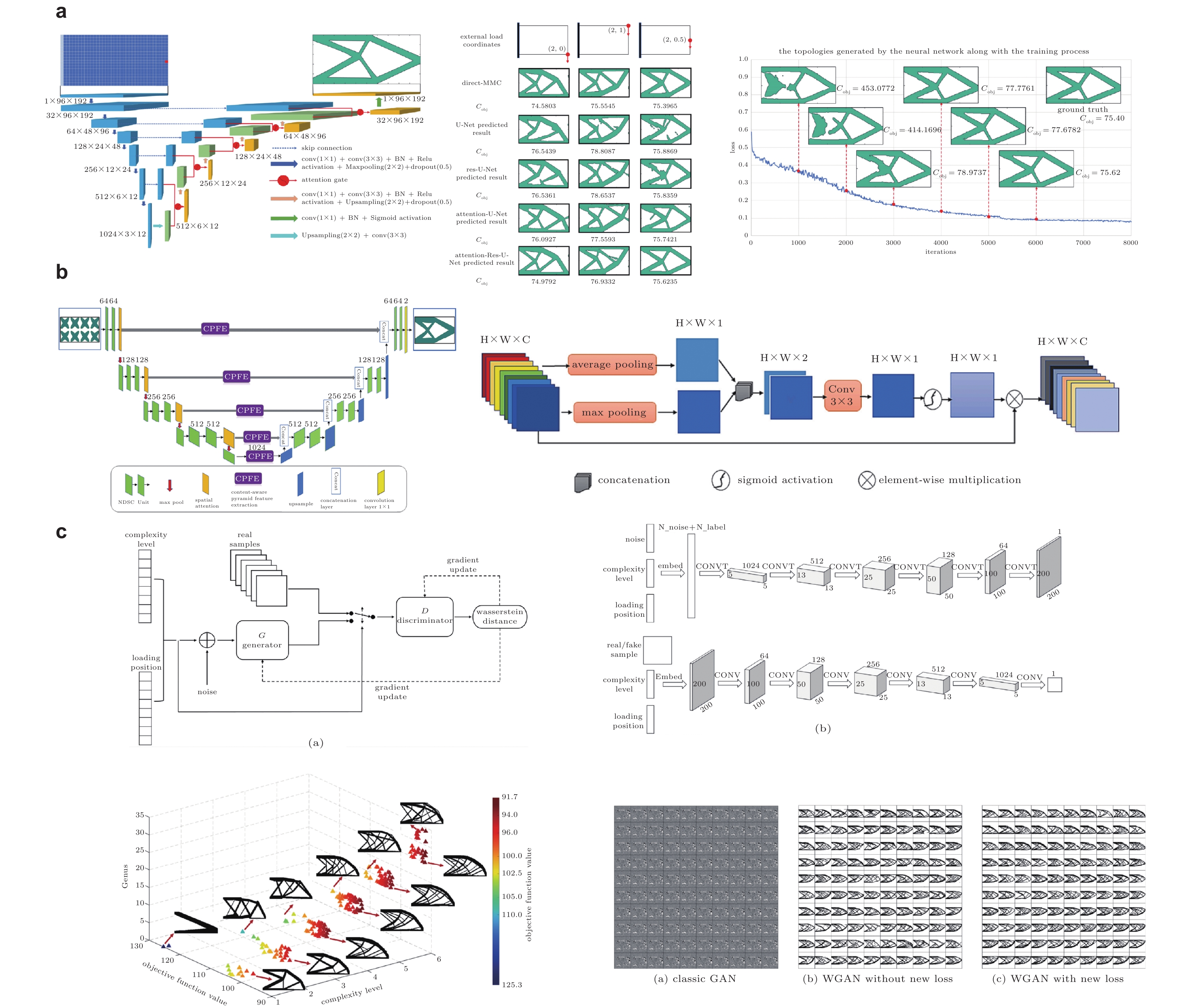

图 10 MMC方法中与实时优化设计相关的机器学习扩展. (a) 基于卷积神经网络的实时拓扑优化模型 (Zheng et al. 2021), (b) 引入金字塔注意力机制的实时拓扑优化模型 (Wang L et al. 2022), (c) 采用Wasserstein生成对抗网络的实时拓扑优化模型 (Du et al. 2025)

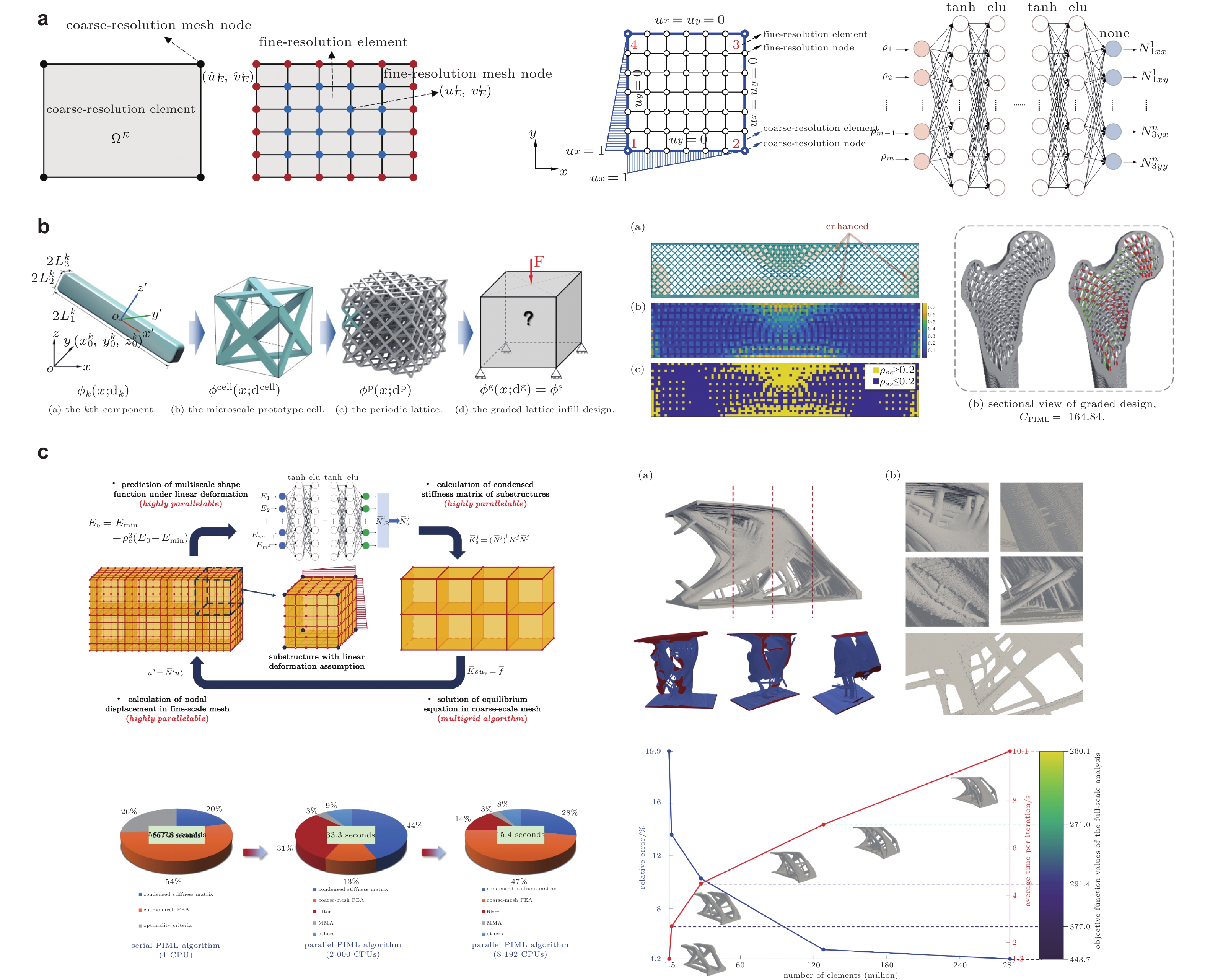

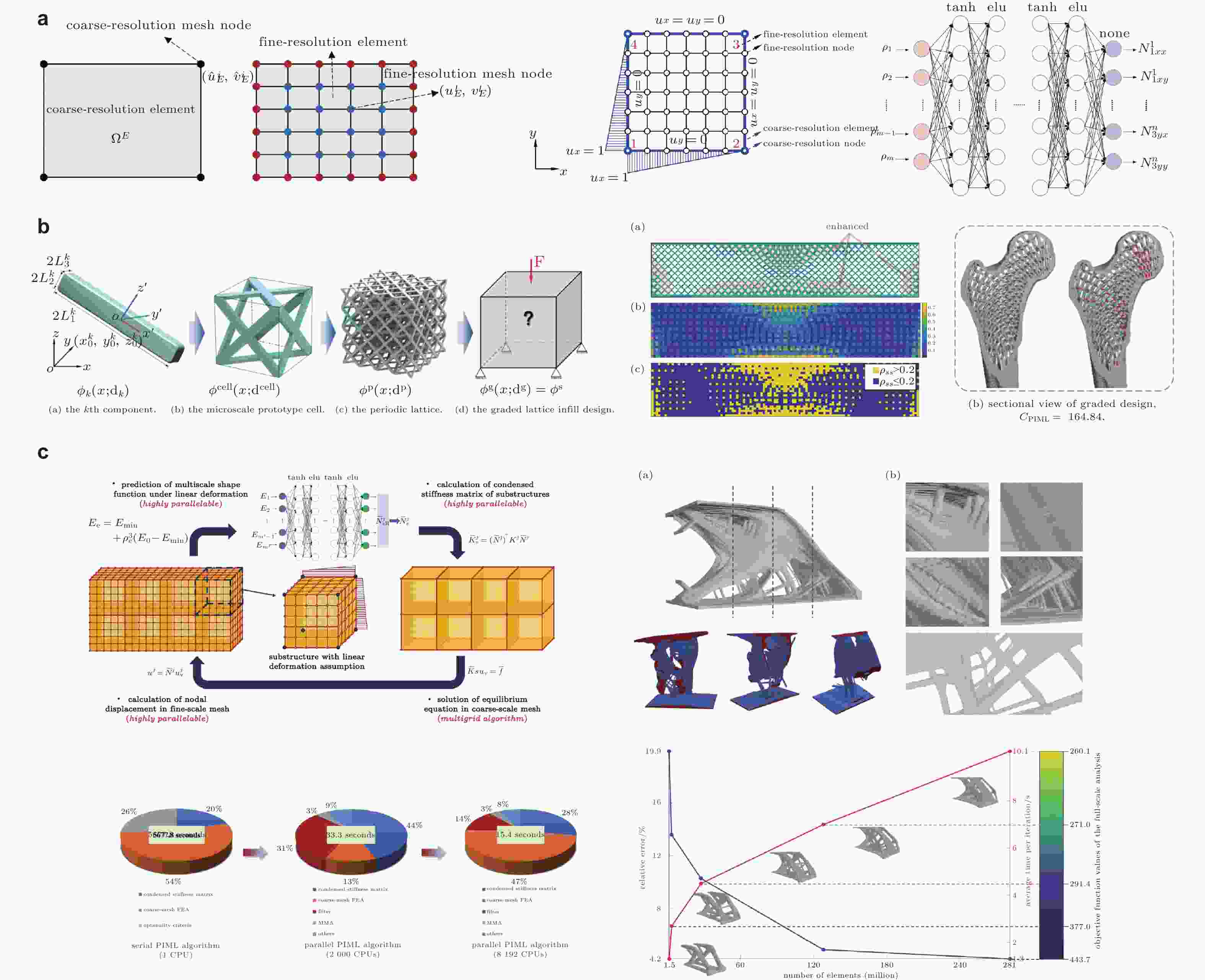

图 11 MMC方法中与结构分析加速相关的机器学习扩展. (a) 问题无关机器学习系列研究 (Huang et al. 2022, 2023; Zhang L et al. 2024), (b) 将问题无关机器学习应用于MMC方法设计三维晶格结构 (Xu W et al. 2025), (c) 基于问题无关机器学习的大规模、高性能并行拓扑优化算法 (Ma et al. 2025)

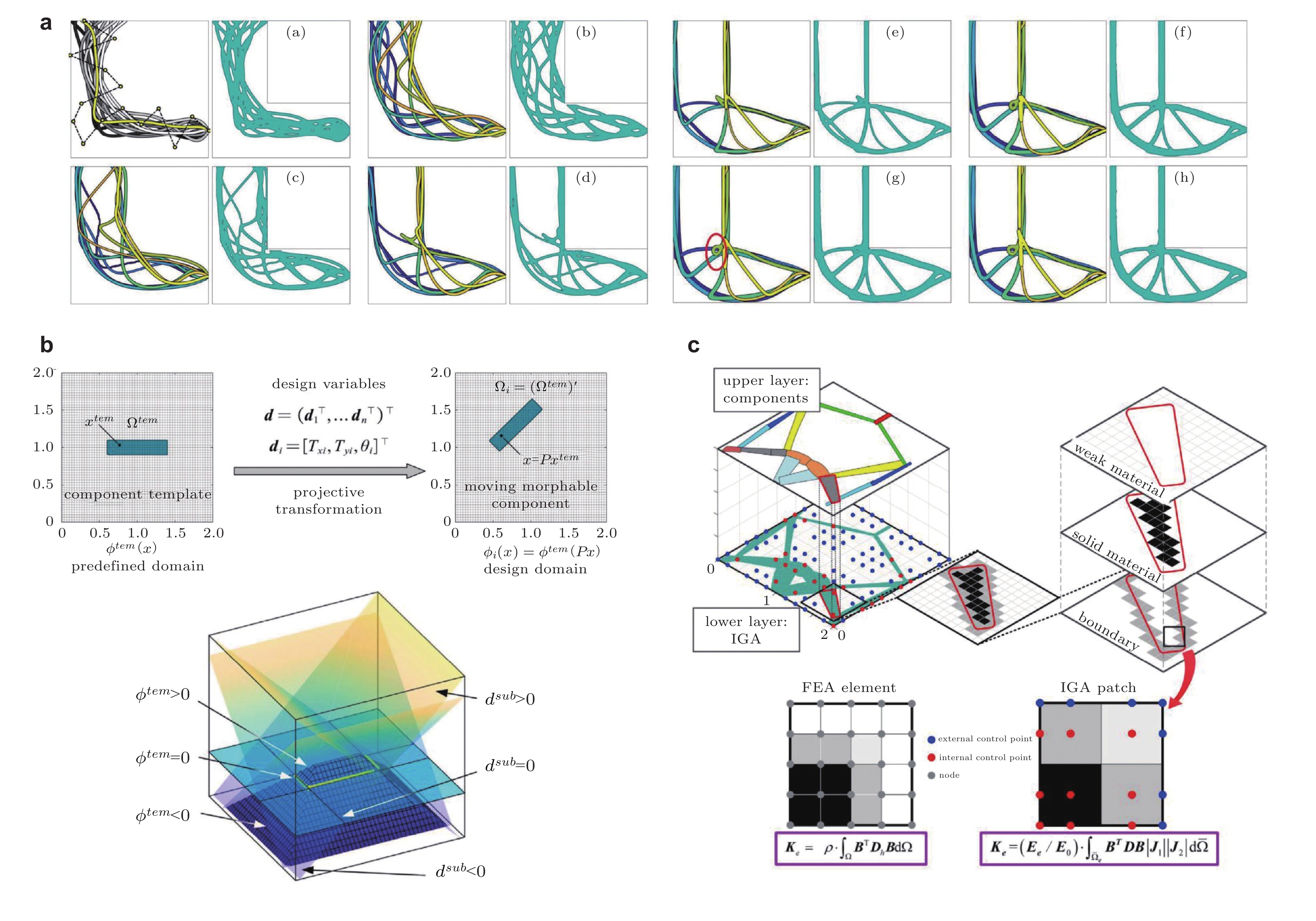

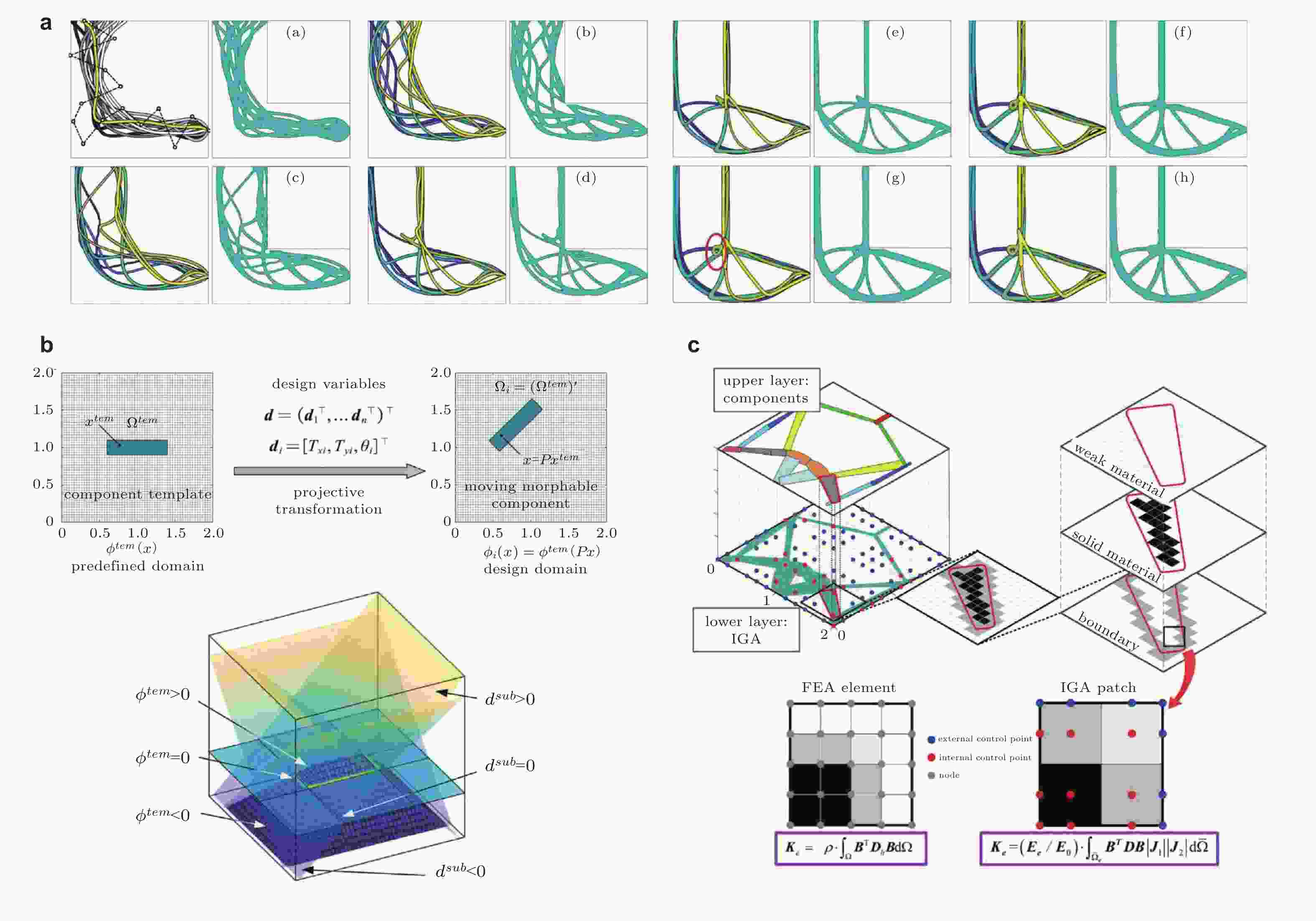

图 12 MMC方法在非线性拓扑优化问题中的应用. (a) 具有约束端的移动可变形贝齐尔组件 (Zhu et al. 2022), (b) 基于投影变换的混合拓扑优化方法 (Wang R et al. 2022), (c) 可变换三角网格方法的分层计算框架 (Ding et al. 2021)

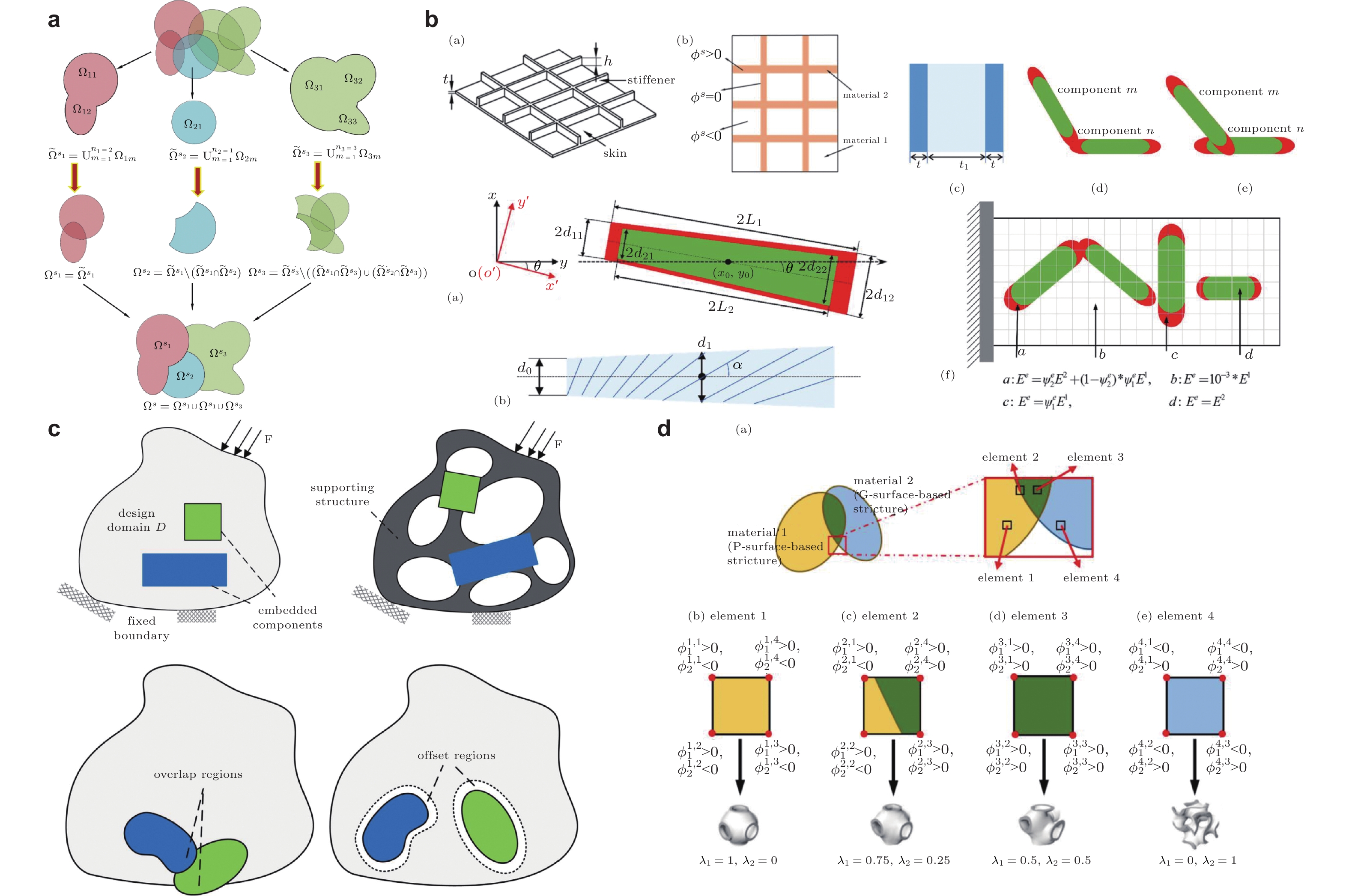

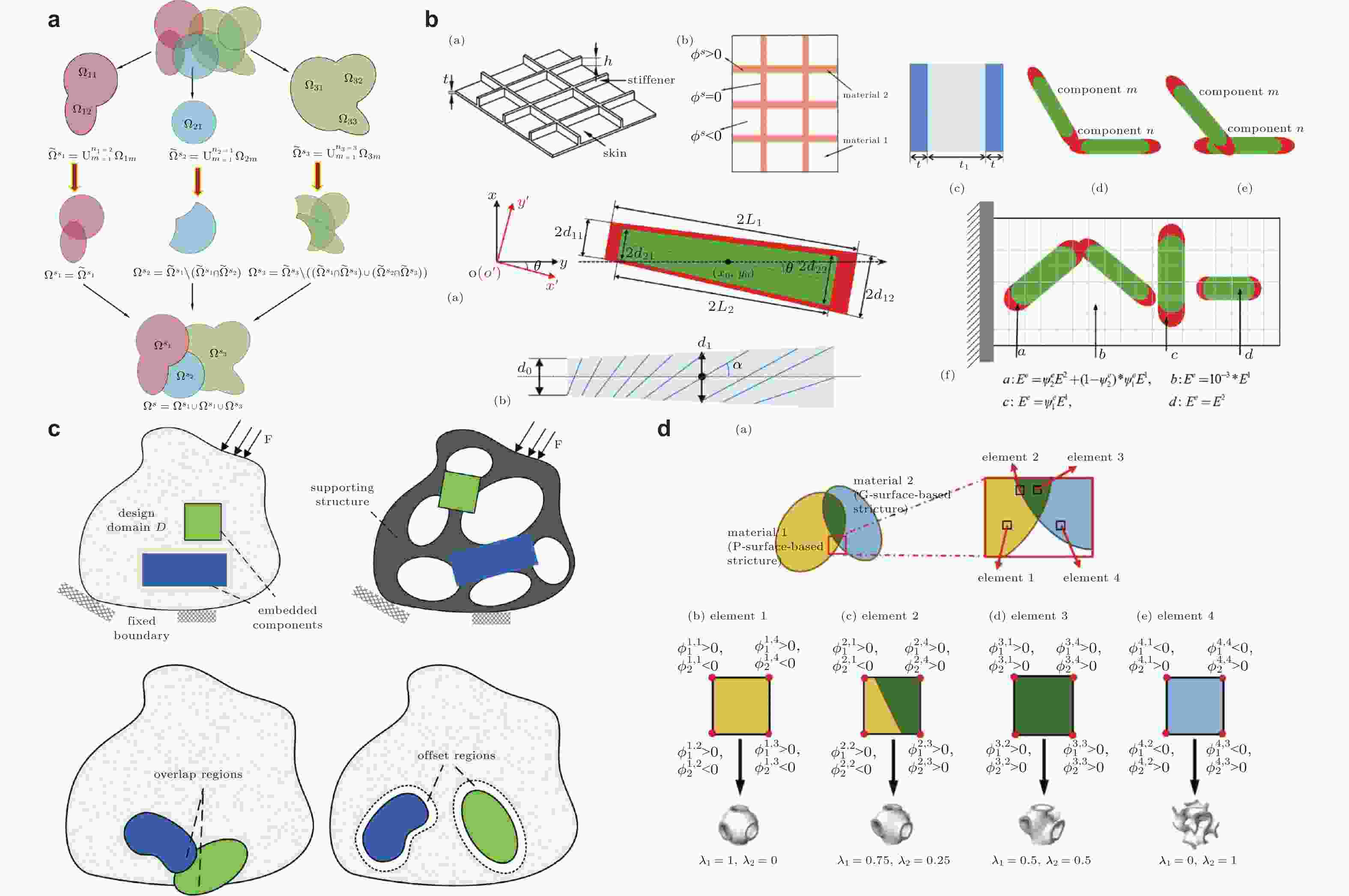

图 13 MMC方法在多材料拓扑优化问题中的应用. (a) 引入多种材料属性组件的策略 (Zhang et al. 2018c), (b) 加入纤维取向设计纤维增强复合材料 (Sun et al. 2022), (c) 将杆件与嵌入组件分别映射的策略 (Wang et al. 2018), (d) 基于三周期极小曲面的多材料重叠 (Zhang et al. 2022)

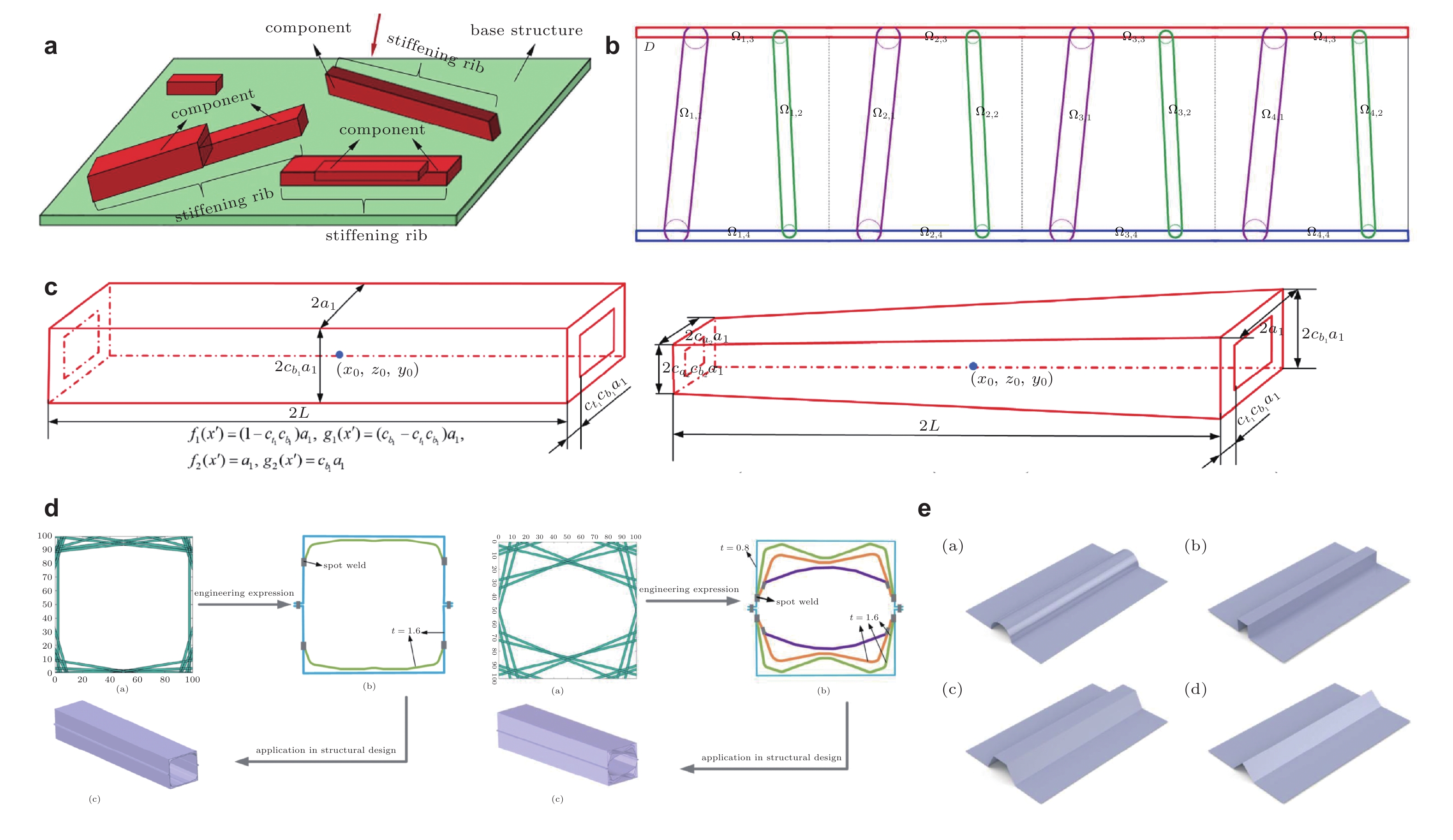

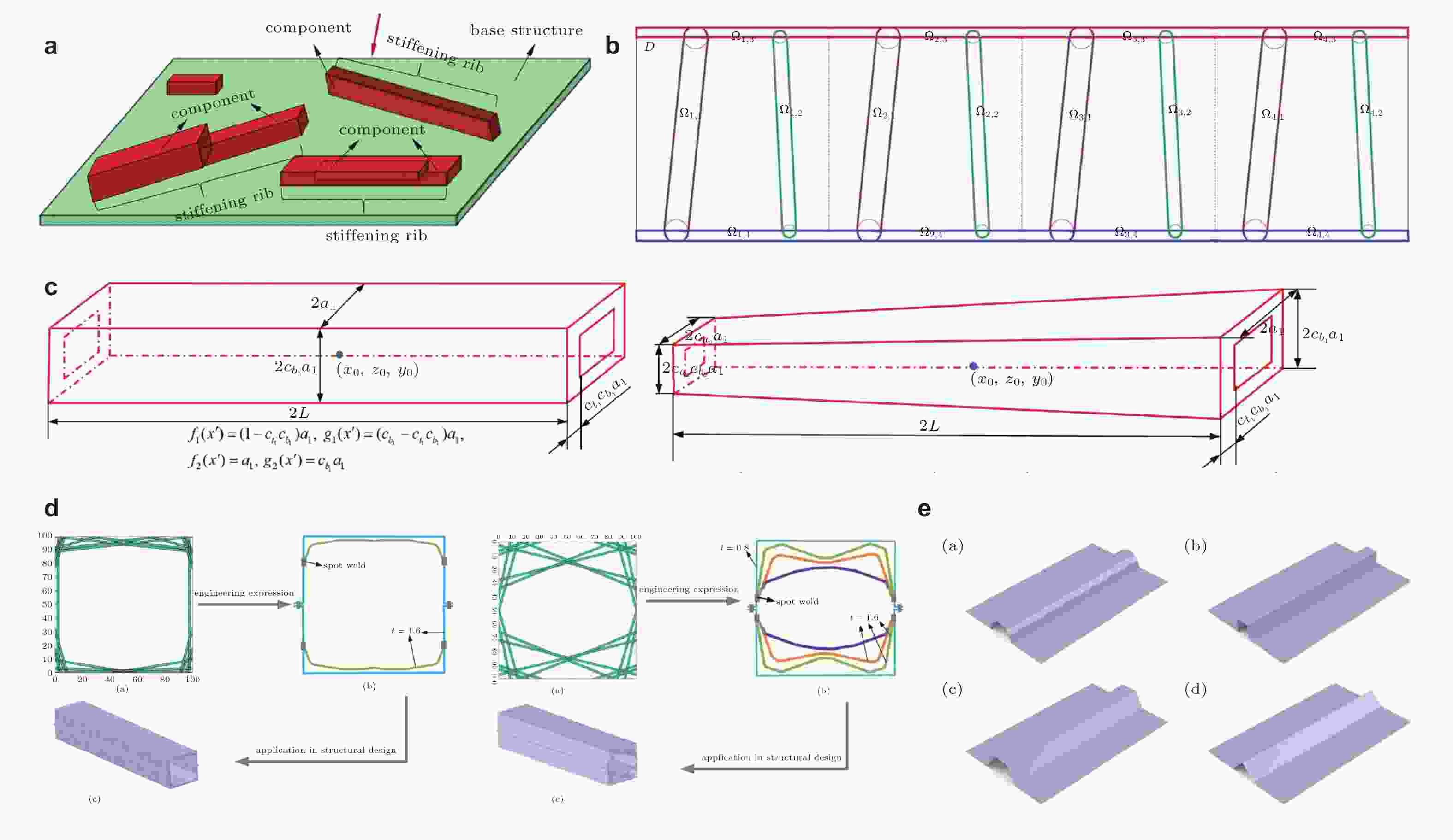

图 14 MMC方法在薄壁结构设计中的应用. (a) 约束材料体积和屈曲荷载因子的设计方案 (Zhang et al. 2018b), (b) 在桁架芯夹层板中的应用 (Chu et al. 2019), (c) 组合内外部TDF描述空心结构组件 (Bai and Zuo, 2020), (d) 基于截面几何性质视角的新优化列式 (Guo et al. 2021), (e) 移动可变形筋肋方法 (Zhang et al. 2025b)

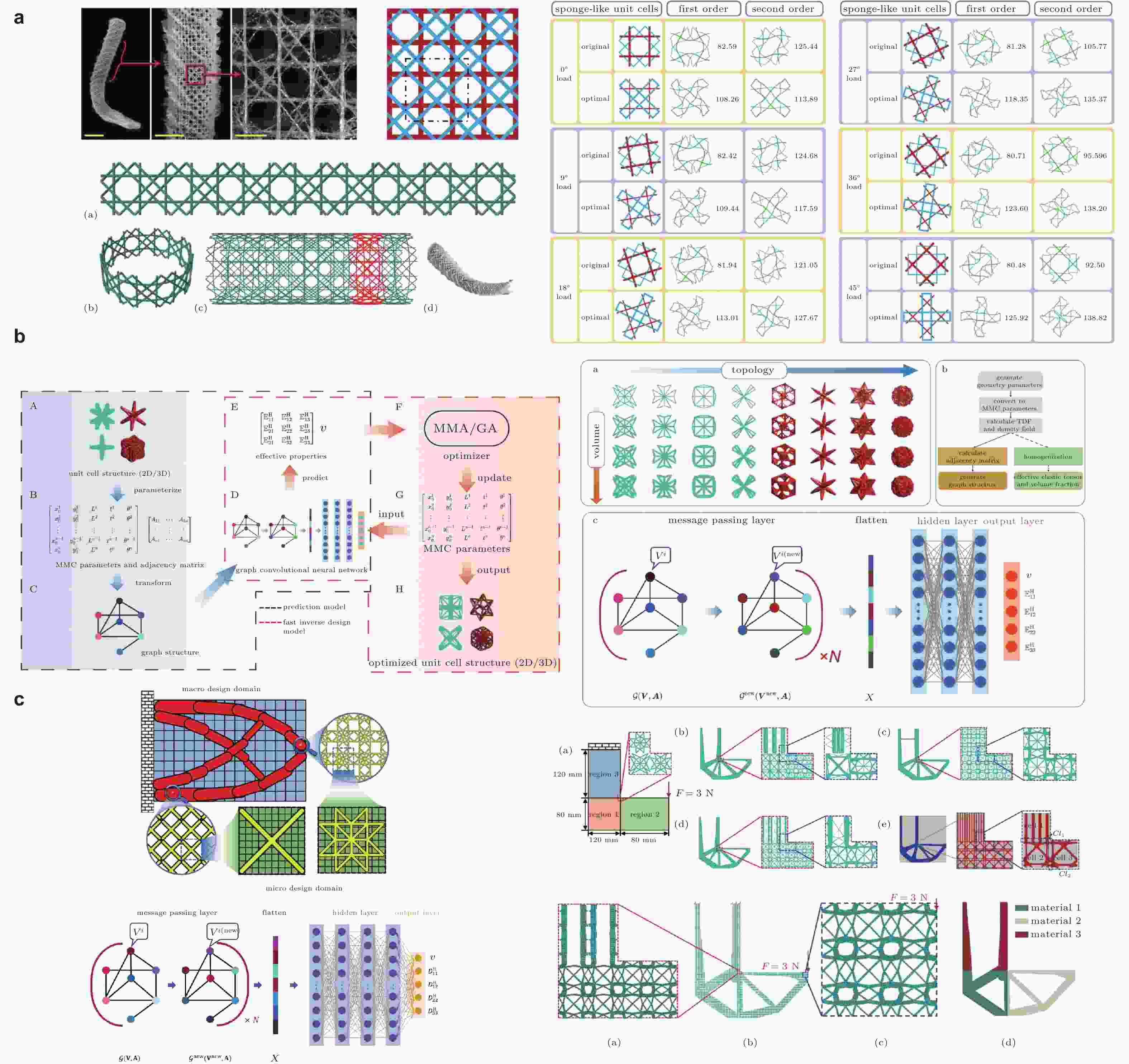

图 15 MMC方法在超材料/超结构设计中的应用及结构基因库相关扩展研究. (a) 深海海绵启发的力学超材料单胞性能提升设计 (Du et al. 2023a), (b) 结合图神经网络的智能逆向设计框架 (Hao et al. 2025), (c) 结合图神经网络的智能逆向设计框架在多尺度优化问题中的应用 (Hao et al. 2026)
-
[1] 贲思. 2025. 基于SiPESC三维MMC模块研发与集成[D]. 大连: 大连理工大学. [2] 陈小前, 张泽雨, 李昱, 等. 2024. 深度学习赋能结构拓扑优化设计方法研究. 力学进展, 54(2): 213-258. [3] 程耿东. 2012. 工程结构优化设计基础[M]. 大连: 大连理工大学出版社. [4] 董浩文. 2017. 声/光超构材料的拓扑优化设计[D]. 北京: 北京交通大学. [5] 葛建立, 杨国来, 吕加. 2012. 同几何分析研究进展. 力学进展, 42(6): 771-784. [6] 国家自然科学基金委员会, 中国科学院. 2021. 中国学科发展战略(固体力学)[M]. 中国科技出版传媒股份有限公司. [7] 韩国杰. 2020. 基于SiPESC的平面问题MMC模块开发[D]. 大连: 大连理工大学. [8] 李佳霖, 赵剑, 孙直, 等. 2022. 基于移动可变形组件法(mmc)的运载火箭传力机架结构的轻量化设计. 力学学报, 54(1): 244-251. doi: 10.6052/0459-1879-21-309 [9] 李焱. 2025. 可调控声学超材料/超表面的拓扑优化设计方法研究[D]. 大连: 大连理工大学. [10] 林家浩. 1983. 结构动力优化设计发展综述. 力学进展, 13(4): 423-431. [11] 钱令希. 1982. 我国结构优化设计现况. 力学进展, 12(3): 229-237. [12] 文桂林, 刘杰, 陈梓杰, 等. 2022. 非线性连续体拓扑优化方法综述. 力学学报, 54(10): 2659-2675. doi: 10.6052/0459-1879-22-179 [13] 薛日野. 2019. 考虑非线性的显式拓扑优化相关的问题研究[D]. 大连: 大连理工大学. [14] 张维声. 2013. 基于水平集方法的应力相关拓扑优化问题研究[D]. 大连: 大连理工大学. [15] 张啸雨, 刘畅, 施丽铭, 等. 2022. 蒙皮点阵一体化支撑结构的移动可变形组件优化设计及空间站应用. 固体力学学报, 43(5): 551-563. doi: 10.19636/j.cnki.cjsm42-1250/o3.2022.010 [16] Allaire G, Jouve F, Toader A M. 2004. Structural optimization using sensitivity analysis and a level-set method. Journal of Computational Physics, 194(1): 363-393.Allaire G, Jouve F, Toader A M. 2004. Structural optimization using sensitivity analysis and a level-set method. Journal of Computational Physics, 194(1): 363-393. [17] Andreassen E, Clausen A, Schevenels M, et al. 2011. Efficient topology optimization in MATLAB using 88 lines of code. Structural and Multidisciplinary Optimization, 43(1): 1-16. doi: 10.1007/s00158-010-0594-7Andreassen E, Clausen A, Schevenels M, et al. 2011. Efficient topology optimization in MATLAB using 88 lines of code. Structural and Multidisciplinary Optimization, 43(1): 1-16. doi: 10.1007/s00158-010-0594-7 [18] Arobli M, Taghizadieh N, Yaghmaei-Sabegh S, et al. 2024. Optimizing additive manufacturing: Minimizing support structures through constraint-based design. Structures, 63: 106379. doi: 10.1016/J.ISTRUC.2024.106379Arobli M, Taghizadieh N, Yaghmaei-Sabegh S, et al. 2024. Optimizing additive manufacturing: Minimizing support structures through constraint-based design. Structures, 63: 106379. doi: 10.1016/J.ISTRUC.2024.106379 [19] Bai J, Zuo W. 2020. Hollow structural design in topology optimization via moving morphable component method. Structural and Multidisciplinary Optimization, 61(1): 187-205. doi: 10.1007/s00158-019-02353-0Bai J, Zuo W. 2020. Hollow structural design in topology optimization via moving morphable component method. Structural and Multidisciplinary Optimization, 61(1): 187-205. doi: 10.1007/s00158-019-02353-0 [20] Bartsch M, Weiland T, Witting M. 1996. Generation of 3D isosurfaces by means of the marching cube algorithm. IEEE Transactions on Magnetics, 32(3): 1469-1472.Bartsch M, Weiland T, Witting M. 1996. Generation of 3D isosurfaces by means of the marching cube algorithm. IEEE Transactions on Magnetics, 32(3): 1469-1472. [21] Bendsøe M P. 1989. Optimal shape design as a material distribution problem. Structural Optimization, 1(4): 193-202. doi: 10.1007/BF01650949Bendsøe M P. 1989. Optimal shape design as a material distribution problem. Structural Optimization, 1(4): 193-202. doi: 10.1007/BF01650949 [22] Bendsøe M P, Kikuchi N. 1988. Generating optimal topologies in structural design using a homogenization method. Computer Methods in Applied Mechanics and Engineering, 71(2): 197-224. doi: 10.1016/0045-7825(88)90086-2Bendsøe M P, Kikuchi N. 1988. Generating optimal topologies in structural design using a homogenization method. Computer Methods in Applied Mechanics and Engineering, 71(2): 197-224. doi: 10.1016/0045-7825(88)90086-2 [23] Bendsøe M P, Sigmund O. 1999. Material interpolation schemes in topology optimization. Archive of Applied Mechanics, 69(9-10): 635-654. doi: 10.1007/s00158-010-0607-6Bendsøe M P, Sigmund O. 1999. Material interpolation schemes in topology optimization. Archive of Applied Mechanics, 69(9-10): 635-654. doi: 10.1007/s00158-010-0607-6 [24] Bendsøe M P, Sigmund O. 2004. Topology optimization: Theory, methods, and applications[M]. Second edition, corrected printing. Berlin, [Germany] ; Heidelberg, [Germany]: Springer.Bendsøe M P, Sigmund O. 2004. Topology optimization: Theory, methods, and applications[M]. Second edition, corrected printing. Berlin, [Germany] ; Heidelberg, [Germany]: Springer. [25] Bruggi M, Duysinx P. 2012. Topology optimization for minimum weight with compliance and stress constraints. Structural and Multidisciplinary Optimization, 46(3): 369-384. doi: 10.1007/s00158-012-0759-7Bruggi M, Duysinx P. 2012. Topology optimization for minimum weight with compliance and stress constraints. Structural and Multidisciplinary Optimization, 46(3): 369-384. doi: 10.1007/s00158-012-0759-7 [26] Chen L, Lu C, Lian H, et al. 2020. Acoustic topology optimization of sound absorbing materials directly from subdivision surfaces with isogeometric boundary element methods. Computer Methods in Applied Mechanics and Engineering, 362: 112806. doi: 10.1016/j.cma.2019.112806Chen L, Lu C, Lian H, et al. 2020. Acoustic topology optimization of sound absorbing materials directly from subdivision surfaces with isogeometric boundary element methods. Computer Methods in Applied Mechanics and Engineering, 362: 112806. doi: 10.1016/j.cma.2019.112806 [27] Chen Q, Wen Q, Zhang X, et al. 2023. Design of compliant constant-output-force mechanisms using topology optimization. Engineering Optimization, 55(12): 1997-2014. doi: 10.1080/0305215X.2022.2139373Chen Q, Wen Q, Zhang X, et al. 2023. Design of compliant constant-output-force mechanisms using topology optimization. Engineering Optimization, 55(12): 1997-2014. doi: 10.1080/0305215X.2022.2139373 [28] Chen Q, Zhang X, Zhu B. 2019. A 213-line topology optimization code for geometrically nonlinear structures. Structural and Multidisciplinary Optimization, 59(5): 1863-1879. doi: 10.1007/s00158-018-2138-5Chen Q, Zhang X, Zhu B. 2019. A 213-line topology optimization code for geometrically nonlinear structures. Structural and Multidisciplinary Optimization, 59(5): 1863-1879. doi: 10.1007/s00158-018-2138-5 [29] Cheng G D, Guo X. 1997. Epsilon-relaxed approach in structural topology optimization. Structural Optimization, 13(4): 258-266.Cheng G D, Guo X. 1997. Epsilon-relaxed approach in structural topology optimization. Structural Optimization, 13(4): 258-266. [30] Cheng G, Jiang Z. 1992. Study on topology optimization with stress constraints. Engineering Optimization, 20(2): 129-148. doi: 10.13427/j.issn.1003-188X.2025.10.002Cheng G, Jiang Z. 1992. Study on topology optimization with stress constraints. Engineering Optimization, 20(2): 129-148. doi: 10.13427/j.issn.1003-188X.2025.10.002 [31] Cheng G, Mei Y, Wang X. 2006. A feature-based structural topology optimization method[M]//Bendsøe M P, Olhoff N, Sigmund O. IUTAM Symposium on Topological Design Optimization of Structures, Machines and Materials: Vol. 137. Springer Netherlands: 505-514.Cheng G, Mei Y, Wang X. 2006. A feature-based structural topology optimization method[M]//Bendsøe M P, Olhoff N, Sigmund O. IUTAM Symposium on Topological Design Optimization of Structures, Machines and Materials: Vol. 137. Springer Netherlands: 505-514. [32] Cheng K T, Olhoff N. 1981. An investigation concerning optimal design of solid elastic plates. International Journal of Solids and Structures, 17(3): 305-323. doi: 10.1016/0020-7683(81)90065-2Cheng K T, Olhoff N. 1981. An investigation concerning optimal design of solid elastic plates. International Journal of Solids and Structures, 17(3): 305-323. doi: 10.1016/0020-7683(81)90065-2 [33] Cheng X, Du Z, Meng W, et al. 2025. Thermomechanical cloaking via compatibility-driven topology optimization. International Journal of Mechanical Sciences, 300: 110400. doi: 10.1016/J.IJMECSCI.2025.110400Cheng X, Du Z, Meng W, et al. 2025. Thermomechanical cloaking via compatibility-driven topology optimization. International Journal of Mechanical Sciences, 300: 110400. doi: 10.1016/J.IJMECSCI.2025.110400 [34] Cheng X, Liu C, Zhang W, et al. 2023. A compatible boundary condition-based topology optimization paradigm for static mechanical cloak design. Extreme Mechanics Letters, 65: 102100.Cheng X, Liu C, Zhang W, et al. 2023. A compatible boundary condition-based topology optimization paradigm for static mechanical cloak design. Extreme Mechanics Letters, 65: 102100. [35] Chi H, Pereira A, Menezes I F M, et al. 2020. Virtual element method (VEM)-based topology optimization: An integrated framework. Structural and Multidisciplinary Optimization, 62(3): 1089-1114. doi: 10.1007/s00158-019-02268-wChi H, Pereira A, Menezes I F M, et al. 2020. Virtual element method (VEM)-based topology optimization: An integrated framework. Structural and Multidisciplinary Optimization, 62(3): 1089-1114. doi: 10.1007/s00158-019-02268-w [36] Chu S, Gao L, Xiao M, et al. 2019. Design of sandwich panels with truss cores using explicit topology optimization. Composite Structures, 210: 892-905.Chu S, Gao L, Xiao M, et al. 2019. Design of sandwich panels with truss cores using explicit topology optimization. Composite Structures, 210: 892-905. [37] Cottrell J A, Hughes T J R, Bazilevs Y. 2009. Isogeometric analysis: Toward integration of CAD and FEA[M]. Chichester, West Sussex, U. K Hoboken, NJ: Wiley.Cottrell J A, Hughes T J R, Bazilevs Y. 2009. Isogeometric analysis: Toward integration of CAD and FEA[M]. Chichester, West Sussex, U. K Hoboken, NJ: Wiley. [38] Cui J, Wang Y, Zhang L, et al. 2024. An intelligent design system for tailored metamaterial properties. International Journal of Mechanical Sciences, 282: 109595. doi: 10.1016/j.ijmecsci.2024.109595Cui J, Wang Y, Zhang L, et al. 2024. An intelligent design system for tailored metamaterial properties. International Journal of Mechanical Sciences, 282: 109595. doi: 10.1016/j.ijmecsci.2024.109595 [39] Cui M, Chen H, Zhou J, et al. 2017. A meshless method for multi-material topology optimization based on the alternating active-phase algorithm. Engineering with Computers, 33(4): 871-884. doi: 10.1007/s00366-017-0503-4Cui M, Chen H, Zhou J, et al. 2017. A meshless method for multi-material topology optimization based on the alternating active-phase algorithm. Engineering with Computers, 33(4): 871-884. doi: 10.1007/s00366-017-0503-4 [40] Cui T, Du Z, Liu C, et al. 2022. Explicit topology optimization with moving morphable component (MMC) introduction mechanism. Acta Mechanica Solida Sinica, 35(3): 384-408. doi: 10.1007/s10338-021-00308-xCui T, Du Z, Liu C, et al. 2022. Explicit topology optimization with moving morphable component (MMC) introduction mechanism. Acta Mechanica Solida Sinica, 35(3): 384-408. doi: 10.1007/s10338-021-00308-x [41] Cui T, Sun Z, Liu C, et al. 2020. Topology optimization of plate structures using plate element-based moving morphable component (MMC) approach. Acta Mechanica Sinica, 36(2): 412-421. doi: 10.1007/s10409-020-00944-5Cui T, Sun Z, Liu C, et al. 2020. Topology optimization of plate structures using plate element-based moving morphable component (MMC) approach. Acta Mechanica Sinica, 36(2): 412-421. doi: 10.1007/s10409-020-00944-5 [42] Deng J, Chen W. 2016. Design for structural flexibility using connected morphable components based topology optimization. Science China Technological Sciences, 59(6): 839-851.Deng J, Chen W. 2016. Design for structural flexibility using connected morphable components based topology optimization. Science China Technological Sciences, 59(6): 839-851. [43] Denimal E, El Haddad F, Wong C, et al. 2021. Topological optimization of under-platform dampers with moving morphable components and global optimization algorithm for nonlinear frequency response. Journal of Engineering for Gas Turbines and Power, 143(2): 21021.Denimal E, El Haddad F, Wong C, et al. 2021. Topological optimization of under-platform dampers with moving morphable components and global optimization algorithm for nonlinear frequency response. Journal of Engineering for Gas Turbines and Power, 143(2): 21021. [44] Denimal E, Renson L, Wong C, et al. 2022. Topology optimisation of friction under-platform dampers using moving morphable components and the efficient global optimization algorithm. Structural and Multidisciplinary Optimization, 65(2): 56. doi: 10.1007/s00158-021-03158-wDenimal E, Renson L, Wong C, et al. 2022. Topology optimisation of friction under-platform dampers using moving morphable components and the efficient global optimization algorithm. Structural and Multidisciplinary Optimization, 65(2): 56. doi: 10.1007/s00158-021-03158-w [45] Ding S, Li B, Chen G, et al. 2021. Isogeometric topology optimization of compliant mechanisms using transformable triangular mesh (TTM) algorithm. Structural and Multidisciplinary Optimization, 64(4): 2553-2576. doi: 10.1007/s00158-021-03008-9Ding S, Li B, Chen G, et al. 2021. Isogeometric topology optimization of compliant mechanisms using transformable triangular mesh (TTM) algorithm. Structural and Multidisciplinary Optimization, 64(4): 2553-2576. doi: 10.1007/s00158-021-03008-9 [46] Dorn W C, Gomory R E, Greenberg H J. 1964. Automatic design of optimal structures. Journal de Mécanique, 3(1): 25-52.Dorn W C, Gomory R E, Greenberg H J. 1964. Automatic design of optimal structures. Journal de Mécanique, 3(1): 25-52. [47] Du Z, Bian T, Ren X, et al. 2024a. Inverse design of mechanical metamaterial achieving a prescribed constitutive curve. Theoretical and Applied Mechanics Letters, 14(1): 100486. doi: 10.1016/j.taml.2023.100486Du Z, Bian T, Ren X, et al. 2024a. Inverse design of mechanical metamaterial achieving a prescribed constitutive curve. Theoretical and Applied Mechanics Letters, 14(1): 100486. doi: 10.1016/j.taml.2023.100486 [48] Du Z, Chen H, Huang G. 2020. Optimal quantum valley hall insulators by rationally engineering berry curvature and band structure. Journal of the Mechanics and Physics of Solids, 135: 103784. doi: 10.1016/j.jmps.2019.103784Du Z, Chen H, Huang G. 2020. Optimal quantum valley hall insulators by rationally engineering berry curvature and band structure. Journal of the Mechanics and Physics of Solids, 135: 103784. doi: 10.1016/j.jmps.2019.103784 [49] Du Z, Cui T, Liu C, et al. 2022a. An efficient and easy-to-extend matlab code of the moving morphable component (MMC) method for three-dimensional topology optimization. Structural and Multidisciplinary Optimization, 65(5): 158.Du Z, Cui T, Liu C, et al. 2022a. An efficient and easy-to-extend matlab code of the moving morphable component (MMC) method for three-dimensional topology optimization. Structural and Multidisciplinary Optimization, 65(5): 158. [50] Du Z, Ding X, Chen H, et al. 2022b. Optimal design of topological waveguides by machine learning. Frontiers in Materials, 9: 1075073. doi: 10.3389/FMATS.2022.1075073Du Z, Ding X, Chen H, et al. 2022b. Optimal design of topological waveguides by machine learning. Frontiers in Materials, 9: 1075073. doi: 10.3389/FMATS.2022.1075073 [51] Du Z, Guo Yunhang, Liu C, et al. 2024b. Structural topology optimization of three-dimensional multi-material composite structures with finite deformation. Composite Structures, 328: 117692.Du Z, Guo Yunhang, Liu C, et al. 2024b. Structural topology optimization of three-dimensional multi-material composite structures with finite deformation. Composite Structures, 328: 117692. [52] Du Z, Hao W, Chen X, et al. 2023a. Artificial intelligence-enhanced bioinspiration: Design of optimized mechanical lattices beyond deep-sea sponges. Extreme Mechanics Letters, 62: 102033.Du Z, Hao W, Chen X, et al. 2023a. Artificial intelligence-enhanced bioinspiration: Design of optimized mechanical lattices beyond deep-sea sponges. Extreme Mechanics Letters, 62: 102033. [53] Du Z, Luo J, Xu Z, et al. 2023b. Higher-order topological insulators by ML-enhanced topology optimization. International Journal of Mechanical Sciences, 255: 108441. doi: 10.1016/j.ijmecsci.2023.108441Du Z, Luo J, Xu Z, et al. 2023b. Higher-order topological insulators by ML-enhanced topology optimization. International Journal of Mechanical Sciences, 255: 108441. doi: 10.1016/j.ijmecsci.2023.108441 [54] Du Z, Ma X, Hao W, et al. 2025. Real-time generative design of diverse optimized structures with controllable structural complexities and high quality. Extreme Mechanics Letters, 77: 102321.Du Z, Ma X, Hao W, et al. 2025. Real-time generative design of diverse optimized structures with controllable structural complexities and high quality. Extreme Mechanics Letters, 77: 102321. [55] Duysinx P, Bendsøe M P. 1998. Topology optimization of continuum structures with local stress constraints. International Journal for Numerical Methods in Engineering, 43(8): 1453-1478. doi: 10.1051/jnwpu/20254350896Duysinx P, Bendsøe M P. 1998. Topology optimization of continuum structures with local stress constraints. International Journal for Numerical Methods in Engineering, 43(8): 1453-1478. doi: 10.1051/jnwpu/20254350896 [56] Duysinx P, Sigmund O. 1998. New developments in handling stress constraints in optimal material distribution[C]//7th Aiaa/usaf/nasa/issmo Symposium on Multidisciplinary Analysis and Optimization. St. Louis, MO, U. S. A. : American Institute of Aeronautics and Astronautics.Duysinx P, Sigmund O. 1998. New developments in handling stress constraints in optimal material distribution[C]//7th Aiaa/usaf/nasa/issmo Symposium on Multidisciplinary Analysis and Optimization. St. Louis, MO, U. S. A. : American Institute of Aeronautics and Astronautics. [57] Eschenauer H A, Kobelev V V, Schumacher A. 1994. Bubble method for topology and shape optimization of structures. Structural Optimization, 8(1): 42-51. doi: 10.1007/BF01742933Eschenauer H A, Kobelev V V, Schumacher A. 1994. Bubble method for topology and shape optimization of structures. Structural Optimization, 8(1): 42-51. doi: 10.1007/BF01742933 [58] Fawaz A, Hua Y, Le Corre S, et al. 2022. Topology optimization of heat exchangers: A review. Energy, 252: 124053.Fawaz A, Hua Y, Le Corre S, et al. 2022. Topology optimization of heat exchangers: A review. Energy, 252: 124053. [59] Ferrari F, Sigmund O. 2020. A new generation 99 line matlab code for compliance topology optimization and its extension to 3D. Structural and Multidisciplinary Optimization, 62(4): 2211-2228. doi: 10.1007/s00158-020-02629-wFerrari F, Sigmund O. 2020. A new generation 99 line matlab code for compliance topology optimization and its extension to 3D. Structural and Multidisciplinary Optimization, 62(4): 2211-2228. doi: 10.1007/s00158-020-02629-w [60] Fukagawa H, Sasaki T, Tsuzuki T, et al. 2018. Long‐lived flexible displays employing efficient and stable inverted organic light‐emitting diodes. Advanced Materials, 30(28): 1706768.Fukagawa H, Sasaki T, Tsuzuki T, et al. 2018. Long‐lived flexible displays employing efficient and stable inverted organic light‐emitting diodes. Advanced Materials, 30(28): 1706768. [61] Fußeder D, Simeon B, Vuong A V. 2015. Fundamental aspects of shape optimization in the context of isogeometric analysis. Computer Methods in Applied Mechanics and Engineering, 286: 313-331. doi: 10.1016/j.cma.2014.12.028Fußeder D, Simeon B, Vuong A V. 2015. Fundamental aspects of shape optimization in the context of isogeometric analysis. Computer Methods in Applied Mechanics and Engineering, 286: 313-331. doi: 10.1016/j.cma.2014.12.028 [62] Guest J K. 2009. Imposing maximum length scale in topology optimization. Structural and Multidisciplinary Optimization, 37(5): 463-473.Guest J K. 2009. Imposing maximum length scale in topology optimization. Structural and Multidisciplinary Optimization, 37(5): 463-473. [63] Guest J K, Prévost J H, Belytschko T. 2004. Achieving minimum length scale in topology optimization using nodal design variables and projection functions. International Journal for Numerical Methods in Engineering, 61(2): 238-254.Guest J K, Prévost J H, Belytschko T. 2004. Achieving minimum length scale in topology optimization using nodal design variables and projection functions. International Journal for Numerical Methods in Engineering, 61(2): 238-254. [64] Guo G, Zhao Y, Su W, et al. 2021. Topology optimization of thin-walled cross section using moving morphable components approach. Structural and Multidisciplinary Optimization, 63(5): 2159-2176.Guo G, Zhao Y, Su W, et al. 2021. Topology optimization of thin-walled cross section using moving morphable components approach. Structural and Multidisciplinary Optimization, 63(5): 2159-2176. [65] Guo X, Cheng G D. 2010. Recent development in structural design and optimization. Acta Mechanica Sinica, 26(6): 807-823.Guo X, Cheng G D. 2010. Recent development in structural design and optimization. Acta Mechanica Sinica, 26(6): 807-823. [66] Guo X, Zhang W, Zhang J, et al. 2016. Explicit structural topology optimization based on moving morphable components (MMC) with curved skeletons. Computer Methods in Applied Mechanics and Engineering, 310: 711-748. doi: 10.1016/j.cma.2016.07.018Guo X, Zhang W, Zhang J, et al. 2016. Explicit structural topology optimization based on moving morphable components (MMC) with curved skeletons. Computer Methods in Applied Mechanics and Engineering, 310: 711-748. doi: 10.1016/j.cma.2016.07.018 [67] Guo X, Zhang W, Zhong W. 2014. Doing topology optimization explicitly and geometrically—a new moving morphable components based framework. Journal of Applied Mechanics, 81(8): 081009.Guo X, Zhang W, Zhong W. 2014. Doing topology optimization explicitly and geometrically—a new moving morphable components based framework. Journal of Applied Mechanics, 81(8): 081009. [68] Guo X, Zhou J, Zhang W, et al. 2017. Self-supporting structure design in additive manufacturing through explicit topology optimization. Computer Methods in Applied Mechanics and Engineering, 323: 27-63. doi: 10.1016/j.cma.2017.05.003Guo X, Zhou J, Zhang W, et al. 2017. Self-supporting structure design in additive manufacturing through explicit topology optimization. Computer Methods in Applied Mechanics and Engineering, 323: 27-63. doi: 10.1016/j.cma.2017.05.003 [69] Guo Y, Liu C, Guo X. 2024. Shell-infill composite structure design based on a hybrid explicit- implicit topology optimization method. Composite Structures, 337: 118029. doi: 10.1016/j.compstruct.2024.118029Guo Y, Liu C, Guo X. 2024. Shell-infill composite structure design based on a hybrid explicit- implicit topology optimization method. Composite Structures, 337: 118029. doi: 10.1016/j.compstruct.2024.118029 [70] Guo Yunhang, Du Z, Liu C, et al. 2023. Explicit topology optimization of three-dimensional geometrically nonlinear structures. Acta Mechanica Sinica, 39(12): 423084. doi: 10.1007/s10409-023-23084-xGuo Yunhang, Du Z, Liu C, et al. 2023. Explicit topology optimization of three-dimensional geometrically nonlinear structures. Acta Mechanica Sinica, 39(12): 423084. doi: 10.1007/s10409-023-23084-x [71] Han Y, Xu B, Liu Y. 2021. An efficient 137-line MATLAB code for geometrically nonlinear topology optimization using bi-directional evolutionary structural optimization method. Structural and Multidisciplinary Optimization, 63(5): 2571-2588. doi: 10.1007/S00158-022-03439-YHan Y, Xu B, Liu Y. 2021. An efficient 137-line MATLAB code for geometrically nonlinear topology optimization using bi-directional evolutionary structural optimization method. Structural and Multidisciplinary Optimization, 63(5): 2571-2588. doi: 10.1007/S00158-022-03439-Y [72] Hao W, Du Z, Hou X, et al. 2025. Intelligent design of mechanical metamaterials: A GCNN-based structural genome database approach. National Science Review, 12(4): nwaf053. doi: 10.1093/nsr/nwaf053Hao W, Du Z, Hou X, et al. 2025. Intelligent design of mechanical metamaterials: A GCNN-based structural genome database approach. National Science Review, 12(4): nwaf053. doi: 10.1093/nsr/nwaf053 [73] Hao W, Du Z, Li J, et al. 2026. Machine learning enhanced multiscale topology optimization with structural genome databases[J]. Science China Physics, Mechanics & Astronomy, 69(1): 214603.Hao W, Du Z, Li J, et al. 2026. Machine learning enhanced multiscale topology optimization with structural genome databases[J]. Science China Physics, Mechanics & Astronomy, 69(1): 214603. [74] Hassani B, Hinton E. 1999. Homogenization and structural topology optimization: Theory, practice, and software[M]. London ; New York: Springer.Hassani B, Hinton E. 1999. Homogenization and structural topology optimization: Theory, practice, and software[M]. London ; New York: Springer. [75] Hassani B, Khanzadi M, Tavakkoli S M. 2012. An isogeometrical approach to structural topology optimization by optimality criteria. Structural and Multidisciplinary Optimization, 45(2): 223-233. doi: 10.1007/s00158-011-0680-5Hassani B, Khanzadi M, Tavakkoli S M. 2012. An isogeometrical approach to structural topology optimization by optimality criteria. Structural and Multidisciplinary Optimization, 45(2): 223-233. doi: 10.1007/s00158-011-0680-5 [76] Herrema A J, Wiese N M, Darling C N, et al. 2017. A framework for parametric design optimization using isogeometric analysis. Computer Methods in Applied Mechanics and Engineering, 316: 944-965. doi: 10.1016/j.cma.2016.10.048Herrema A J, Wiese N M, Darling C N, et al. 2017. A framework for parametric design optimization using isogeometric analysis. Computer Methods in Applied Mechanics and Engineering, 316: 944-965. doi: 10.1016/j.cma.2016.10.048 [77] Hirotani S, Yaji K, Makihara K, et al. 2025. Data-driven real-time topology optimization using consistent rotation-based moving morphable components. AIAA Journal, 63(10): 4491-4497.Hirotani S, Yaji K, Makihara K, et al. 2025. Data-driven real-time topology optimization using consistent rotation-based moving morphable components. AIAA Journal, 63(10): 4491-4497. [78] Hoang V N, Jang G W. 2017. Topology optimization using moving morphable bars for versatile thickness control. Computer Methods in Applied Mechanics and Engineering, 317: 153-173.Hoang V N, Jang G W. 2017. Topology optimization using moving morphable bars for versatile thickness control. Computer Methods in Applied Mechanics and Engineering, 317: 153-173. [79] Hoang V N, Nguyen N L, Nguyen-Xuan H. 2020. Topology optimization of coated structure using moving morphable sandwich bars. Structural and Multidisciplinary Optimization, 61(2): 491-506. doi: 10.1007/s00158-019-02370-zHoang V N, Nguyen N L, Nguyen-Xuan H. 2020. Topology optimization of coated structure using moving morphable sandwich bars. Structural and Multidisciplinary Optimization, 61(2): 491-506. doi: 10.1007/s00158-019-02370-z [80] Hoang V N, Pham T, Tangaramvong S, et al. 2021. Robust adaptive topology optimization of porous infills under loading uncertainties. Structural and Multidisciplinary Optimization, 63(5): 2253-2266.Hoang V N, Pham T, Tangaramvong S, et al. 2021. Robust adaptive topology optimization of porous infills under loading uncertainties. Structural and Multidisciplinary Optimization, 63(5): 2253-2266. [81] Hou W, Gai Y, Zhu X, et al. 2017. Explicit isogeometric topology optimization using moving morphable components. Computer Methods in Applied Mechanics and Engineering, 326: 694-712.Hou W, Gai Y, Zhu X, et al. 2017. Explicit isogeometric topology optimization using moving morphable components. Computer Methods in Applied Mechanics and Engineering, 326: 694-712. [82] Hu X, Bao R, Chen W. 2020. Enhance the sensitivity of strain-gauge-based force sensors using moving morphable units method. Structural and Multidisciplinary Optimization, 62(5): 2805-2816. doi: 10.1007/s00158-020-02631-2Hu X, Bao R, Chen W. 2020. Enhance the sensitivity of strain-gauge-based force sensors using moving morphable units method. Structural and Multidisciplinary Optimization, 62(5): 2805-2816. doi: 10.1007/s00158-020-02631-2 [83] Hu X, Bao R, Chen W, et al. 2021. Robust optimal design of strain-gauge-based force sensors using moving morphable components method: Enhanced sensitivity and reduced cross-interference. Structural and Multidisciplinary Optimization, 64(3): 1439-1455. doi: 10.1007/s00158-021-02929-9Hu X, Bao R, Chen W, et al. 2021. Robust optimal design of strain-gauge-based force sensors using moving morphable components method: Enhanced sensitivity and reduced cross-interference. Structural and Multidisciplinary Optimization, 64(3): 1439-1455. doi: 10.1007/s00158-021-02929-9 [84] Hu X, Li Z, Bao R, et al. 2022. An adaptive method of moving asymptotes for topology optimization based on the trust region. Computer Methods in Applied Mechanics and Engineering, 393: 114202. doi: 10.1016/j.cma.2021.114202Hu X, Li Z, Bao R, et al. 2022. An adaptive method of moving asymptotes for topology optimization based on the trust region. Computer Methods in Applied Mechanics and Engineering, 393: 114202. doi: 10.1016/j.cma.2021.114202 [85] Hu X, Li Z, Bao R, et al. 2024. Stabilized time‐series moving morphable components method for topology optimization. International Journal for Numerical Methods in Engineering, 125(20): e7562. doi: 10.1002/nme.7562Hu X, Li Z, Bao R, et al. 2024. Stabilized time‐series moving morphable components method for topology optimization. International Journal for Numerical Methods in Engineering, 125(20): e7562. doi: 10.1002/nme.7562 [86] Huang J, Zhang Y, Yin J, et al. 2025. Matlab codes for 2D and 3D MMC-based natural frequency topology optimization. Structural and Multidisciplinary Optimization, 68(12): 244. doi: 10.1007/s00158-025-04186-6Huang J, Zhang Y, Yin J, et al. 2025. Matlab codes for 2D and 3D MMC-based natural frequency topology optimization. Structural and Multidisciplinary Optimization, 68(12): 244. doi: 10.1007/s00158-025-04186-6 [87] Huang M, Cui T, Liu C, et al. 2023. A problem-independent machine learning (PIML) enhanced substructure-based approach for large-scale structural analysis and topology optimization of linear elastic structures. Extreme Mechanics Letters, 63: 102041. doi: 10.1016/J.EML.2023.102041Huang M, Cui T, Liu C, et al. 2023. A problem-independent machine learning (PIML) enhanced substructure-based approach for large-scale structural analysis and topology optimization of linear elastic structures. Extreme Mechanics Letters, 63: 102041. doi: 10.1016/J.EML.2023.102041 [88] Huang M, Du Z, Liu C, et al. 2022. Problem-independent machine learning (PIML)-based topology optimization—a universal approach. Extreme Mechanics Letters, 56: 101887.Huang M, Du Z, Liu C, et al. 2022. Problem-independent machine learning (PIML)-based topology optimization—a universal approach. Extreme Mechanics Letters, 56: 101887. [89] Huang M, Liu C, Guo Y, et al. 2024. A mechanics-based data-free problem independent machine learning (PIML) model for large-scale structural analysis and design optimization. Journal of the Mechanics and Physics of Solids, 193: 105893.Huang M, Liu C, Guo Y, et al. 2024. A mechanics-based data-free problem independent machine learning (PIML) model for large-scale structural analysis and design optimization. Journal of the Mechanics and Physics of Solids, 193: 105893. [90] Huang X, Xie Y M. 2007. Convergent and mesh-independent solutions for the bi-directional evolutionary structural optimization method. Finite Elements in Analysis and Design, 43(14): 1039-1049.Huang X, Xie Y M. 2007. Convergent and mesh-independent solutions for the bi-directional evolutionary structural optimization method. Finite Elements in Analysis and Design, 43(14): 1039-1049. [91] Huang X, Xie Y M. 2010. Evolutionary topology optimization of continuum structures: Methods and applications[M]. Chichester, West Sussex: Wiley.Huang X, Xie Y M. 2010. Evolutionary topology optimization of continuum structures: Methods and applications[M]. Chichester, West Sussex: Wiley. [92] Hughes T J R, Cottrell J A, Bazilevs Y. 2005. Isogeometric analysis: CAD, finite elements, NURBS, exact geometry and mesh refinement. Computer Methods in Applied Mechanics and Engineering, 194(39-41): 4135-4195.Hughes T J R, Cottrell J A, Bazilevs Y. 2005. Isogeometric analysis: CAD, finite elements, NURBS, exact geometry and mesh refinement. Computer Methods in Applied Mechanics and Engineering, 194(39-41): 4135-4195. [93] Huo W, Liu C, Du Z, et al. 2022. Topology optimization on complex surfaces based on the moving morphable component method and computational conformal mapping. Journal of Applied Mechanics, 89(5): 51008. doi: 10.1115/1.4053727Huo W, Liu C, Du Z, et al. 2022. Topology optimization on complex surfaces based on the moving morphable component method and computational conformal mapping. Journal of Applied Mechanics, 89(5): 51008. doi: 10.1115/1.4053727 [94] Huo W, Liu C, Guo Y, et al. 2025. Explicit topography design for complex shell structures based on embedded spline components. Journal of the Mechanics and Physics of Solids, 196: 105974. doi: 10.1016/J.JMPS.2024.105974Huo W, Liu C, Guo Y, et al. 2025. Explicit topography design for complex shell structures based on embedded spline components. Journal of the Mechanics and Physics of Solids, 196: 105974. doi: 10.1016/J.JMPS.2024.105974 [95] Jia Y, Du Z, Guo Y, et al. 2025. Topology optimization of multi-material bimodulus thermo-elastic structures and its applications in the design of strut-and-tie models. Engineering Structures, 339: 120551. doi: 10.1016/j.engstruct.2025.120551Jia Y, Du Z, Guo Y, et al. 2025. Topology optimization of multi-material bimodulus thermo-elastic structures and its applications in the design of strut-and-tie models. Engineering Structures, 339: 120551. doi: 10.1016/j.engstruct.2025.120551 [96] Jia Y, Meng W, Du Z, et al. 2024. Explicit design optimization of air rudders for maximizing stiffness and fundamental frequency. Thin Walled Structures, 203: 112152. doi: 10.1016/j.tws.2024.112152Jia Y, Meng W, Du Z, et al. 2024. Explicit design optimization of air rudders for maximizing stiffness and fundamental frequency. Thin Walled Structures, 203: 112152. doi: 10.1016/j.tws.2024.112152 [97] Jiang S, Liu X, Liu J, et al. 2022. Flexible metamaterial electronics. Advanced Materials, 34(52): 2200070. doi: 10.1002/adma.202200070Jiang S, Liu X, Liu J, et al. 2022. Flexible metamaterial electronics. Advanced Materials, 34(52): 2200070. doi: 10.1002/adma.202200070 [98] Jiang X, Huo W, Liu C, et al. 2023a. Explicit layout optimization of complex rib-reinforced thin-walled structures via computational conformal mapping (CCM). Computer Methods in Applied Mechanics and Engineering, 404: 115745.Jiang X, Huo W, Liu C, et al. 2023a. Explicit layout optimization of complex rib-reinforced thin-walled structures via computational conformal mapping (CCM). Computer Methods in Applied Mechanics and Engineering, 404: 115745. [99] Jiang X, Liu C, Du Z, et al. 2022. A unified framework for explicit layout/topology optimization of thin-walled structures based on moving morphable components (MMC) method and adaptive ground structure approach. Computer Methods in Applied Mechanics and Engineering, 396: 115047. doi: 10.1016/j.cma.2022.115047Jiang X, Liu C, Du Z, et al. 2022. A unified framework for explicit layout/topology optimization of thin-walled structures based on moving morphable components (MMC) method and adaptive ground structure approach. Computer Methods in Applied Mechanics and Engineering, 396: 115047. doi: 10.1016/j.cma.2022.115047 [100] Jiang X, Liu C, Zhang S, et al. 2023b. Explicit topology optimization design of stiffened plate structures based on the moving morphable component (MMC) method. Computer Modeling in Engineering and Sciences, 135(2): 809-838. doi: 10.32604/cmes.2023.023561Jiang X, Liu C, Zhang S, et al. 2023b. Explicit topology optimization design of stiffened plate structures based on the moving morphable component (MMC) method. Computer Modeling in Engineering and Sciences, 135(2): 809-838. doi: 10.32604/cmes.2023.023561 [101] Jiang X, Wang H, Li Y, et al. 2020. Machine learning based parameter tuning strategy for MMC based topology optimization. Advances in Engineering Software, 149: 102841. doi: 10.1016/j.advengsoft.2020.102841Jiang X, Wang H, Li Y, et al. 2020. Machine learning based parameter tuning strategy for MMC based topology optimization. Advances in Engineering Software, 149: 102841. doi: 10.1016/j.advengsoft.2020.102841 [102] Jiang X, Zhang W, Liu C, et al. 2023c. An explicit approach for simultaneous shape and topology optimization of shell structures. Applied Mathematical Modelling, 113: 613-639. doi: 10.1016/j.apm.2022.09.028Jiang X, Zhang W, Liu C, et al. 2023c. An explicit approach for simultaneous shape and topology optimization of shell structures. Applied Mathematical Modelling, 113: 613-639. doi: 10.1016/j.apm.2022.09.028 [103] Kim K H, Yoon G H. 2022. Acoustic topology optimization using moving morphable components in neural network-based design. Structural and Multidisciplinary Optimization, 65(2): 47.Kim K H, Yoon G H. 2022. Acoustic topology optimization using moving morphable components in neural network-based design. Structural and Multidisciplinary Optimization, 65(2): 47. [104] Kirsch U. 1990. On singular topologies in optimum structural design. Structural Optimization, 2(3): 133-142. doi: 10.1007/BF01836562Kirsch U. 1990. On singular topologies in optimum structural design. Structural Optimization, 2(3): 133-142. doi: 10.1007/BF01836562 [105] Kumar A V, Gossard D C. 1996. Synthesis of optimal shape and topology of structures. Journal of Mechanical Design, 118(1): 68-74.Kumar A V, Gossard D C. 1996. Synthesis of optimal shape and topology of structures. Journal of Mechanical Design, 118(1): 68-74. [106] Lan T, Do T, Al-Ketan O, et al. 2023. Concurrent multiscale topology optimisation towards design and additive manufacturing of bio-mimicking porous structures. Virtual and Physical Prototyping, 18(1): e2150867.Lan T, Do T, Al-Ketan O, et al. 2023. Concurrent multiscale topology optimisation towards design and additive manufacturing of bio-mimicking porous structures. Virtual and Physical Prototyping, 18(1): e2150867. [107] Lee S, Kwak B M. 2008. Smooth boundary topology optimization for eigenvalue performance and its application to the design of a flexural stage. Engineering Optimization, 40(3): 271-285. doi: 10.1080/03052150701693198Lee S, Kwak B M. 2008. Smooth boundary topology optimization for eigenvalue performance and its application to the design of a flexural stage. Engineering Optimization, 40(3): 271-285. doi: 10.1080/03052150701693198 [108] Lei X, Liu C, Du Z, et al. 2019. Machine learning-driven real-time topology optimization under moving morphable component-based framework. Journal of Applied Mechanics, 86(1): 11004. doi: 10.1115/1.4041319Lei X, Liu C, Du Z, et al. 2019. Machine learning-driven real-time topology optimization under moving morphable component-based framework. Journal of Applied Mechanics, 86(1): 11004. doi: 10.1115/1.4041319 [109] Li B, Ding S, Guo S, et al. 2021. A novel isogeometric topology optimization framework for planar compliant mechanisms. Applied Mathematical Modelling, 92: 931-950. doi: 10.1016/j.apm.2020.11.032Li B, Ding S, Guo S, et al. 2021. A novel isogeometric topology optimization framework for planar compliant mechanisms. Applied Mathematical Modelling, 92: 931-950. doi: 10.1016/j.apm.2020.11.032 [110] Li D, Kim I Y. 2018. Multi-material topology optimization for practical lightweight design. Structural and Multidisciplinary Optimization, 58(3): 1081-1094. doi: 10.4271/2023-01-0023Li D, Kim I Y. 2018. Multi-material topology optimization for practical lightweight design. Structural and Multidisciplinary Optimization, 58(3): 1081-1094. doi: 10.4271/2023-01-0023 [111] Li J, Guan Y, Wang Guangchun, et al. 2020. A meshless method for topology optimization of structures under multiple load cases. Structures, 25: 173-179. doi: 10.1016/j.istruc.2020.03.005Li J, Guan Y, Wang Guangchun, et al. 2020. A meshless method for topology optimization of structures under multiple load cases. Structures, 25: 173-179. doi: 10.1016/j.istruc.2020.03.005 [112] Li J, Zhang Y, Du Z, et al. 2022a. A moving morphable component‐based topology optimization approach considering transient structural dynamic responses. International Journal for Numerical Methods in Engineering, 123(3): 705-728. doi: 10.1002/NME.6872Li J, Zhang Y, Du Z, et al. 2022a. A moving morphable component‐based topology optimization approach considering transient structural dynamic responses. International Journal for Numerical Methods in Engineering, 123(3): 705-728. doi: 10.1002/NME.6872 [113] Li J, Zhang Y, Du Z, et al. 2022b. Topology optimization considering steady-state structural dynamic responses via moving morphable component (MMC) approach. Acta Mechanica Solida Sinica, 35(6): 949-960.Li J, Zhang Y, Du Z, et al. 2022b. Topology optimization considering steady-state structural dynamic responses via moving morphable component (MMC) approach. Acta Mechanica Solida Sinica, 35(6): 949-960. [114] Li L, Liu C, Du Z, et al. 2022. A meshless moving morphable component-based method for structural topology optimization without weak material. Acta Mechanica Sinica, 38(5): 421445. doi: 10.1007/S10409-022-09021-8Li L, Liu C, Du Z, et al. 2022. A meshless moving morphable component-based method for structural topology optimization without weak material. Acta Mechanica Sinica, 38(5): 421445. doi: 10.1007/S10409-022-09021-8 [115] Li L, Liu C, Zhang W, et al. 2021. Combined model-based topology optimization of stiffened plate structures via MMC approach. International Journal of Mechanical Sciences, 208: 106682. doi: 10.1016/J.IJMECSCI.2021.106682Li L, Liu C, Zhang W, et al. 2021. Combined model-based topology optimization of stiffened plate structures via MMC approach. International Journal of Mechanical Sciences, 208: 106682. doi: 10.1016/J.IJMECSCI.2021.106682 [116] Li Z, Hu X, Chen W. 2023. Moving morphable curved components framework of topology optimization based on the concept of time series. Structural and Multidisciplinary Optimization, 66(1): 19. doi: 10.1007/s00158-022-03472-xLi Z, Hu X, Chen W. 2023. Moving morphable curved components framework of topology optimization based on the concept of time series. Structural and Multidisciplinary Optimization, 66(1): 19. doi: 10.1007/s00158-022-03472-x [117] Li Z, Hu X, Chen W. 2025. 3D Stress-constrained topology optimization via stabilized time-series moving morphable components approach. Structural and Multidisciplinary Optimization, 68(10): 211. doi: 10.1007/s00158-025-04123-7Li Z, Hu X, Chen W. 2025. 3D Stress-constrained topology optimization via stabilized time-series moving morphable components approach. Structural and Multidisciplinary Optimization, 68(10): 211. doi: 10.1007/s00158-025-04123-7 [118] Li Z, Xu H, Zhang S. 2024. A comprehensive review of explicit topology optimization based on moving morphable components (MMC) method. Archives of Computational Methods in Engineering, 31(5): 2507-2536. doi: 10.1007/s11831-023-10053-8Li Z, Xu H, Zhang S. 2024. A comprehensive review of explicit topology optimization based on moving morphable components (MMC) method. Archives of Computational Methods in Engineering, 31(5): 2507-2536. doi: 10.1007/s11831-023-10053-8 [119] Lian R, Jing S, He Z, et al. 2020. An accelerating convergence rate method for moving morphable components. Mathematical Problems in Engineering, 2020: 1-15. doi: 10.1155/2020/2478292Lian R, Jing S, He Z, et al. 2020. An accelerating convergence rate method for moving morphable components. Mathematical Problems in Engineering, 2020: 1-15. doi: 10.1155/2020/2478292 [120] Liu C, Du Z, Zhang W, et al. 2017. Additive manufacturing-oriented design of graded lattice structures through explicit topology optimization. Journal of Applied Mechanics, 84(8): 81008. doi: 10.1115/1.4036941Liu C, Du Z, Zhang W, et al. 2017. Additive manufacturing-oriented design of graded lattice structures through explicit topology optimization. Journal of Applied Mechanics, 84(8): 81008. doi: 10.1115/1.4036941 [121] Liu C, Du Z, Zhu Y, et al. 2020. Optimal design of shell-graded-infill structures by a hybrid MMC-MMV approach. Computer Methods in Applied Mechanics and Engineering, 369: 113187. doi: 10.1016/j.cma.2020.113187Liu C, Du Z, Zhu Y, et al. 2020. Optimal design of shell-graded-infill structures by a hybrid MMC-MMV approach. Computer Methods in Applied Mechanics and Engineering, 369: 113187. doi: 10.1016/j.cma.2020.113187 [122] Liu C, Zhu Y, Sun Z, et al. 2018. An efficient moving morphable component (MMC)-based approach for multi-resolution topology optimization. Structural and Multidisciplinary Optimization, 58(6): 2455-2479.Liu C, Zhu Y, Sun Z, et al. 2018. An efficient moving morphable component (MMC)-based approach for multi-resolution topology optimization. Structural and Multidisciplinary Optimization, 58(6): 2455-2479. [123] Liu D, Du J. 2019. A moving morphable components based shape reconstruction framework for electrical impedance tomography. IEEE Transactions on Medical Imaging, 38(12): 2937-2948.Liu D, Du J. 2019. A moving morphable components based shape reconstruction framework for electrical impedance tomography. IEEE Transactions on Medical Imaging, 38(12): 2937-2948. [124] Liu D, Du J. 2021. Shape and topology optimization in electrical impedance tomography via moving morphable components method. Structural and Multidisciplinary Optimization, 64(2): 585-598. doi: 10.1007/s00158-021-02970-8Liu D, Du J. 2021. Shape and topology optimization in electrical impedance tomography via moving morphable components method. Structural and Multidisciplinary Optimization, 64(2): 585-598. doi: 10.1007/s00158-021-02970-8 [125] Liu D, Gu D, Smyl D, et al. 2020. Shape reconstruction using boolean operations in electrical impedance tomography. IEEE Transactions on Medical Imaging, 39(9): 2954-2964.Liu D, Gu D, Smyl D, et al. 2020. Shape reconstruction using boolean operations in electrical impedance tomography. IEEE Transactions on Medical Imaging, 39(9): 2954-2964. [126] Liu H, Yang D, Hao P, et al. 2018. Isogeometric analysis based topology optimization design with global stress constraint. Computer Methods in Applied Mechanics and Engineering, 342: 625-652. doi: 10.1016/j.cma.2018.08.013Liu H, Yang D, Hao P, et al. 2018. Isogeometric analysis based topology optimization design with global stress constraint. Computer Methods in Applied Mechanics and Engineering, 342: 625-652. doi: 10.1016/j.cma.2018.08.013 [127] Lotfalian A, Esmaeilpour P, Yoon G H, et al. 2025. Integrating moving morphable components and plastic layout optimization: A two-stage approach for enhanced structural topology optimization. Structural and Multidisciplinary Optimization, 68(2): 38. doi: 10.1007/s00158-025-03974-4Lotfalian A, Esmaeilpour P, Yoon G H, et al. 2025. Integrating moving morphable components and plastic layout optimization: A two-stage approach for enhanced structural topology optimization. Structural and Multidisciplinary Optimization, 68(2): 38. doi: 10.1007/s00158-025-03974-4 [128] Lu C, Chen W, Liu S. 2024. Microstructure topology optimization of underwater anechoic layers via moving morphable component (MMC) method. Structural and Multidisciplinary Optimization, 67(12): 207. doi: 10.1007/s00158-024-03937-1Lu C, Chen W, Liu S. 2024. Microstructure topology optimization of underwater anechoic layers via moving morphable component (MMC) method. Structural and Multidisciplinary Optimization, 67(12): 207. doi: 10.1007/s00158-024-03937-1 [129] Lu C, Chen W, Liu S. 2025. A moving morphable component (MMC)-based topology optimization method for underwater sound absorption materials using a mixed finite element formulation. Structural and Multidisciplinary Optimization, 68(7): 129. doi: 10.1007/s00158-025-04057-0Lu C, Chen W, Liu S. 2025. A moving morphable component (MMC)-based topology optimization method for underwater sound absorption materials using a mixed finite element formulation. Structural and Multidisciplinary Optimization, 68(7): 129. doi: 10.1007/s00158-025-04057-0 [130] Lu S, Zhang Z, Guo H, et al. 2021. Nonlinear dynamic topology optimization with explicit and smooth geometric outline via moving morphable components method. Structural and Multidisciplinary Optimization, 64(4): 2465-2487.Lu S, Zhang Z, Guo H, et al. 2021. Nonlinear dynamic topology optimization with explicit and smooth geometric outline via moving morphable components method. Structural and Multidisciplinary Optimization, 64(4): 2465-2487. [131] Luo J, Du Z, Chen H, et al. 2023. Efficient design of helical higher-order topological insulators in 3D elastic medium. Journal of the Mechanics and Physics of Solids, 176: 105325.Luo J, Du Z, Chen H, et al. 2023. Efficient design of helical higher-order topological insulators in 3D elastic medium. Journal of the Mechanics and Physics of Solids, 176: 105325. [132] Luo J, Du Z, Guo Y, et al. 2021a. Multi-class, multi-functional design of photonic topological insulators by rational symmetry-indicators engineering. Nanophotonics, 10(18): 4523-4531. doi: 10.1515/nanoph-2021-0433Luo J, Du Z, Guo Y, et al. 2021a. Multi-class, multi-functional design of photonic topological insulators by rational symmetry-indicators engineering. Nanophotonics, 10(18): 4523-4531. doi: 10.1515/nanoph-2021-0433 [133] Luo J, Du Z, Liu C, et al. 2021b. Moving morphable components-based inverse design formulation for quantum valley/spin Hall insulators. Extreme Mechanics Letters, 45: 101276.Luo J, Du Z, Liu C, et al. 2021b. Moving morphable components-based inverse design formulation for quantum valley/spin Hall insulators. Extreme Mechanics Letters, 45: 101276. [134] Ma X, Huang M, Du Z, et al. 2025. A high-performance parallel algorithm based on problem independent machine learning (PIML) for large-scale topology optimization[J]. Acta Mechanica Sinica.Ma X, Huang M, Du Z, et al. 2025. A high-performance parallel algorithm based on problem independent machine learning (PIML) for large-scale topology optimization[J]. Acta Mechanica Sinica. [135] Mach P, Rodriguez S J, Nortrup R, et al. 2001. Monolithically integrated, flexible display of polymer-dispersed liquid crystal driven by rubber-stamped organic thin-film transistors. Applied Physics Letters, 78(23): 3592-3594.Mach P, Rodriguez S J, Nortrup R, et al. 2001. Monolithically integrated, flexible display of polymer-dispersed liquid crystal driven by rubber-stamped organic thin-film transistors. Applied Physics Letters, 78(23): 3592-3594. [136] Maxwell J C. 1870. On reciprocal figures, frames, and diagrams of forces. Transactions of the Royal Society of Edinburgh, 26(1): 1-40. doi: 10.1017/s0370164600041699Maxwell J C. 1870. On reciprocal figures, frames, and diagrams of forces. Transactions of the Royal Society of Edinburgh, 26(1): 1-40. doi: 10.1017/s0370164600041699 [137] Michell A G M. 1904. The limits of economy of material in frame-structures[J]. The London, Edinburgh, and Dublin Philosophical Magazine and Journal of Science, 8(47): 589-597.Michell A G M. 1904. The limits of economy of material in frame-structures[J]. The London, Edinburgh, and Dublin Philosophical Magazine and Journal of Science, 8(47): 589-597. [138] Mo K, Guo D, Wang H. 2020. Iterative reanalysis approximation‐assisted moving morphable component‐based topology optimization method. International Journal for Numerical Methods in Engineering, 121(22): 5101-5122.Mo K, Guo D, Wang H. 2020. Iterative reanalysis approximation‐assisted moving morphable component‐based topology optimization method. International Journal for Numerical Methods in Engineering, 121(22): 5101-5122. [139] Nazarov S A, Sokołowski J. 2003. Asymptotic analysis of shape functionals. Journal de Mathématiques Pures et Appliquées, 82(2): 125-196.Nazarov S A, Sokołowski J. 2003. Asymptotic analysis of shape functionals. Journal de Mathématiques Pures et Appliquées, 82(2): 125-196. [140] Nguyen H D, Hoang V N, Jang G W. 2020. Moving morphable patches for three-dimensional topology optimization with thickness control. Computer Methods in Applied Mechanics and Engineering, 368: 113186. doi: 10.1016/j.cma.2020.113186Nguyen H D, Hoang V N, Jang G W. 2020. Moving morphable patches for three-dimensional topology optimization with thickness control. Computer Methods in Applied Mechanics and Engineering, 368: 113186. doi: 10.1016/j.cma.2020.113186 [141] Niu B, Wadbro E. 2019. On equal-width length-scale control in topology optimization. Structural and Multidisciplinary Optimization, 59(4): 1321-1334.Niu B, Wadbro E. 2019. On equal-width length-scale control in topology optimization. Structural and Multidisciplinary Optimization, 59(4): 1321-1334. [142] Niu L, Yuan Y. 2010. A new trust-region algorithm for nonlinear constrained optimization. Journal of Computational Mathematics, 28(1): 72-86.Niu L, Yuan Y. 2010. A new trust-region algorithm for nonlinear constrained optimization. Journal of Computational Mathematics, 28(1): 72-86. [143] Norato J A. 2018. Topology optimization with supershapes. Structural and Multidisciplinary Optimization, 58(2): 415-434. doi: 10.1007/s00158-018-2034-zNorato J A. 2018. Topology optimization with supershapes. Structural and Multidisciplinary Optimization, 58(2): 415-434. doi: 10.1007/s00158-018-2034-z [144] Norato J A, Bell B K, Tortorelli D A. 2015. A geometry projection method for continuum-based topology optimization with discrete elements. Computer Methods in Applied Mechanics and Engineering, 293: 306-327. doi: 10.1016/j.cma.2015.05.005Norato J A, Bell B K, Tortorelli D A. 2015. A geometry projection method for continuum-based topology optimization with discrete elements. Computer Methods in Applied Mechanics and Engineering, 293: 306-327. doi: 10.1016/j.cma.2015.05.005 [145] Osher S J, Santosa F. 2001. Level set methods for optimization problems involving geometry and constraints. Journal of Computational Physics, 171(1): 272-288. doi: 10.1016/j.jcp.2008.07.011Osher S J, Santosa F. 2001. Level set methods for optimization problems involving geometry and constraints. Journal of Computational Physics, 171(1): 272-288. doi: 10.1016/j.jcp.2008.07.011 [146] Otsuka K, Dong S, Kuzuno R, et al. 2023. Moving morphable multi components introducing intent of designer in topology optimization. AIAA Journal, 61(4): 1720-1734.Otsuka K, Dong S, Kuzuno R, et al. 2023. Moving morphable multi components introducing intent of designer in topology optimization. AIAA Journal, 61(4): 1720-1734. [147] Pedersen P. 1973. Optimal joint positions for space trusses. Journal of the Structural Division, 99(12): 2459-2476. doi: 10.1061/JSDEAG.0003669Pedersen P. 1973. Optimal joint positions for space trusses. Journal of the Structural Division, 99(12): 2459-2476. doi: 10.1061/JSDEAG.0003669 [148] Poulsen T A. 2003. A new scheme for imposing a minimum length scale in topology optimization. International Journal for Numerical Methods in Engineering, 57(6): 741-760. doi: 10.1002/nme.694Poulsen T A. 2003. A new scheme for imposing a minimum length scale in topology optimization. International Journal for Numerical Methods in Engineering, 57(6): 741-760. doi: 10.1002/nme.694 [149] Prager W, Rozvany G I N. 1977. Optimal layout of grillages. Journal of Structural Mechanics, 5(1): 1-18.Prager W, Rozvany G I N. 1977. Optimal layout of grillages. Journal of Structural Mechanics, 5(1): 1-18. [150] Querin O M, Steven G P, Xie Y M. 1998. Evolutionary structural optimisation (ESO) using a bidirectional algorithm. Engineering Computations, 15(8): 1031-1048. doi: 10.1080/0305215X.2014.914282Querin O M, Steven G P, Xie Y M. 1998. Evolutionary structural optimisation (ESO) using a bidirectional algorithm. Engineering Computations, 15(8): 1031-1048. doi: 10.1080/0305215X.2014.914282 [151] Querin O M, Young V, Steven G P, et al. 2000. Computational efficiency and validation of bi-directional evolutionary structural optimisation. Computer Methods in Applied Mechanics and Engineering, 189(2): 559-573. doi: 10.1016/S0045-7825(99)00309-6Querin O M, Young V, Steven G P, et al. 2000. Computational efficiency and validation of bi-directional evolutionary structural optimisation. Computer Methods in Applied Mechanics and Engineering, 189(2): 559-573. doi: 10.1016/S0045-7825(99)00309-6 [152] Ren G, Cen C, Jiao T, et al. 2025. Multiscale topology optimization for fiber-reinforced composites based on moving morphable component (MMC) method. Structural and Multidisciplinary Optimization, 68(4): 80. doi: 10.1007/s00158-025-04020-zRen G, Cen C, Jiao T, et al. 2025. Multiscale topology optimization for fiber-reinforced composites based on moving morphable component (MMC) method. Structural and Multidisciplinary Optimization, 68(4): 80. doi: 10.1007/s00158-025-04020-z [153] Ren H, Xia B, Wang W, et al. 2025. AMRTO: Automated CAD model reconstruction of topology optimization result. Computer Methods in Applied Mechanics and Engineering, 435: 117673. doi: 10.1016/j.cma.2024.117673Ren H, Xia B, Wang W, et al. 2025. AMRTO: Automated CAD model reconstruction of topology optimization result. Computer Methods in Applied Mechanics and Engineering, 435: 117673. doi: 10.1016/j.cma.2024.117673 [154] Rostami P, Marzbanrad J. 2020. Hybrid algorithms for handling the numerical noise in topology optimization. Acta Mechanica Sinica, 36(2): 536-554.Rostami P, Marzbanrad J. 2020. Hybrid algorithms for handling the numerical noise in topology optimization. Acta Mechanica Sinica, 36(2): 536-554. [155] Rostami P, Marzbanrad J, 2021a. Cooperative coevolutionary topology optimization using moving morphable components[J]. Engineering Optimization, 53(6): 962-983.Rostami P, Marzbanrad J, 2021a. Cooperative coevolutionary topology optimization using moving morphable components[J]. Engineering Optimization, 53(6): 962-983. [156] Rostami P, Marzbanrad J, 2021b. Identification of optimal topologies for continuum structures using metaheuristics: A comparative study[J]. Archives of Computational Methods in Engineering, 28(7): 4687-4714.Rostami P, Marzbanrad J, 2021b. Identification of optimal topologies for continuum structures using metaheuristics: A comparative study[J]. Archives of Computational Methods in Engineering, 28(7): 4687-4714. [157] Rostami P, Marzbanrad J, 2021c. Stress-limited topology optimization with local volume constraint using moving morphable components[J]. Archive of Applied Mechanics, 91(5): 2345-2367.Rostami P, Marzbanrad J, 2021c. Stress-limited topology optimization with local volume constraint using moving morphable components[J]. Archive of Applied Mechanics, 91(5): 2345-2367. [158] Rostami P, Marzbanrad J, Taghavi Parsa M H. 2022. Eigenfrequency-based topology optimization using cooperative coevolutionary strategies and moving morphable components. Journal of the Brazilian Society of Mechanical Sciences and Engineering, 44(5): 194. doi: 10.1007/s40430-022-03496-wRostami P, Marzbanrad J, Taghavi Parsa M H. 2022. Eigenfrequency-based topology optimization using cooperative coevolutionary strategies and moving morphable components. Journal of the Brazilian Society of Mechanical Sciences and Engineering, 44(5): 194. doi: 10.1007/s40430-022-03496-w [159] Rozvany G I N, Olhoff N. 2000. Topology optimization of structures and composite continua[M]. Dordrecht: Kluwer.Rozvany G I N, Olhoff N. 2000. Topology optimization of structures and composite continua[M]. Dordrecht: Kluwer. [160] Rozvany G I N, Zhou M, Birker T. 1992. Generalized shape optimization without homogenization. Structural Optimization, 4(3-4): 250-252. doi: 10.1007/BF01742754Rozvany G I N, Zhou M, Birker T. 1992. Generalized shape optimization without homogenization. Structural Optimization, 4(3-4): 250-252. doi: 10.1007/BF01742754 [161] Saxena A. 2011. Are circular shaped masks adequate in adaptive mask overlay topology synthesis method?. Journal of Mechanical Design, 133(1): 11001.Saxena A. 2011. Are circular shaped masks adequate in adaptive mask overlay topology synthesis method?. Journal of Mechanical Design, 133(1): 11001. [162] Sethian J A, Wiegmann A. 2000. Structural boundary design via level set and immersed interface methods. Journal of Computational Physics, 163(2): 489-528. doi: 10.1006/jcph.2000.6581Sethian J A, Wiegmann A. 2000. Structural boundary design via level set and immersed interface methods. Journal of Computational Physics, 163(2): 489-528. doi: 10.1006/jcph.2000.6581 [163] Shannon T, Robinson T T, Murphy A, et al. 2022. Generalized bezier components and successive component refinement using moving morphable components. Structural and Multidisciplinary Optimization, 65(7): 193. doi: 10.1007/s00158-022-03289-8Shannon T, Robinson T T, Murphy A, et al. 2022. Generalized bezier components and successive component refinement using moving morphable components. Structural and Multidisciplinary Optimization, 65(7): 193. doi: 10.1007/s00158-022-03289-8 [164] Shannon T, Robinson T T, Murphy A, et al. 2025. Applying extrinsic geometric constraints in the MMC framework. Structural and Multidisciplinary Optimization, 68(5): 104.Shannon T, Robinson T T, Murphy A, et al. 2025. Applying extrinsic geometric constraints in the MMC framework. Structural and Multidisciplinary Optimization, 68(5): 104. [165] Sheng Z, Sun Y, Liu K, et al. 2024. An improved feature-driven moving morphable components method for topology optimization. Archive of Applied Mechanics, 94(2): 261-279. doi: 10.1007/s00419-023-02519-9Sheng Z, Sun Y, Liu K, et al. 2024. An improved feature-driven moving morphable components method for topology optimization. Archive of Applied Mechanics, 94(2): 261-279. doi: 10.1007/s00419-023-02519-9 [166] Shepherd R F, Ilievski F, Choi W, et al. 2011. Multigait soft robot. Proceedings of the National Academy of Sciences, 108(51): 20400-20403. doi: 10.1073/pnas.1116564108Shepherd R F, Ilievski F, Choi W, et al. 2011. Multigait soft robot. Proceedings of the National Academy of Sciences, 108(51): 20400-20403. doi: 10.1073/pnas.1116564108 [167] Sigmund O. 1994. Design of material structures using topology optimization[D]. Technical University of Denmark Lyngby.Sigmund O. 1994. Design of material structures using topology optimization[D]. Technical University of Denmark Lyngby. [168] Sigmund O. 1997. On the design of compliant mechanisms using topology optimization*. Mechanics of Structures and Machines, 25(4): 493-524.Sigmund O. 1997. On the design of compliant mechanisms using topology optimization*. Mechanics of Structures and Machines, 25(4): 493-524. [169] Sigmund O. 2001. A 99 line topology optimization code written in matlab. Structural and Multidisciplinary Optimization, 21(2): 120-127. doi: 10.1007/s001580050176Sigmund O. 2001. A 99 line topology optimization code written in matlab. Structural and Multidisciplinary Optimization, 21(2): 120-127. doi: 10.1007/s001580050176 [170] Sigmund O, Petersson J. 1998. Numerical instabilities in topology optimization: A survey on procedures dealing with checkerboards, mesh-dependencies and local minima. Structural Optimization, 16(1): 68-75.Sigmund O, Petersson J. 1998. Numerical instabilities in topology optimization: A survey on procedures dealing with checkerboards, mesh-dependencies and local minima. Structural Optimization, 16(1): 68-75. [171] Subedi S C, Verma C S, Suresh K. 2020. A review of methods for the geometric post-processing of topology optimized models[J]. Journal of Computing and Information Science in Engineering, 20(6).Subedi S C, Verma C S, Suresh K. 2020. A review of methods for the geometric post-processing of topology optimized models[J]. Journal of Computing and Information Science in Engineering, 20(6). [172] Sun J. 2020. Topology optimization for removing internal resonances of a rotating thin plate. Journal of Sound and Vibration, 480: 115420.Sun J. 2020. Topology optimization for removing internal resonances of a rotating thin plate. Journal of Sound and Vibration, 480: 115420. [173] Sun J, Tian Q, Hu H, et al. 2018. Topology optimization of a flexible multibody system with variable-length bodies described by ALE–ANCF. Nonlinear Dynamics, 93(2): 413-441.Sun J, Tian Q, Hu H, et al. 2018. Topology optimization of a flexible multibody system with variable-length bodies described by ALE–ANCF. Nonlinear Dynamics, 93(2): 413-441. [174] Sun J, Tian Q, Hu H, et al. 2019. Topology optimization for eigenfrequencies of a rotating thin plate via moving morphable components. Journal of Sound and Vibration, 448: 83-107. doi: 10.1016/j.jsv.2019.01.054Sun J, Tian Q, Hu H, et al. 2019. Topology optimization for eigenfrequencies of a rotating thin plate via moving morphable components. Journal of Sound and Vibration, 448: 83-107. doi: 10.1016/j.jsv.2019.01.054 [175] Sun Z, Cui R, Cui T, et al. 2020. An optimization approach for stiffener layout of composite stiffened panels based on moving morphable components (MMCs). Acta Mechanica Solida Sinica, 33(5): 650-662.Sun Z, Cui R, Cui T, et al. 2020. An optimization approach for stiffener layout of composite stiffened panels based on moving morphable components (MMCs). Acta Mechanica Solida Sinica, 33(5): 650-662. [176] Sun Z, Cui T, Zhu Y, et al. 2018. The mechanical principles behind the golden ratio distribution of veins in plant leaves. Scientific Reports, 8(1): 13859. doi: 10.1038/s41598-018-31763-1Sun Z, Cui T, Zhu Y, et al. 2018. The mechanical principles behind the golden ratio distribution of veins in plant leaves. Scientific Reports, 8(1): 13859. doi: 10.1038/s41598-018-31763-1 [177] Sun Z, Song Z, Song J, et al. 2022. Structural optimization of fiber-reinforced material based on moving morphable components (MMCs). Acta Mechanica Solida Sinica, 35(4): 632-646.Sun Z, Song Z, Song J, et al. 2022. Structural optimization of fiber-reinforced material based on moving morphable components (MMCs). Acta Mechanica Solida Sinica, 35(4): 632-646. [178] Suzuki K, Kikuchi N. 1991. A homogenization method for shape and topology optimization. Computer Methods in Applied Mechanics and Engineering, 93(3): 291-318. doi: 10.1016/j.compstruc.2024.107636Suzuki K, Kikuchi N. 1991. A homogenization method for shape and topology optimization. Computer Methods in Applied Mechanics and Engineering, 93(3): 291-318. doi: 10.1016/j.compstruc.2024.107636 [179] Svanberg K. 1987. The method of moving asymptotes—a new method for structural optimization. International Journal for Numerical Methods in Engineering, 24(2): 359-373. doi: 10.3901/JME.2018.05.210Svanberg K. 1987. The method of moving asymptotes—a new method for structural optimization. International Journal for Numerical Methods in Engineering, 24(2): 359-373. doi: 10.3901/JME.2018.05.210 [180] Svanberg K. 2002. A class of globally convergent optimization methods based on conservative convex separable approximations. SIAM Journal on Optimization, 12(2): 555-573.Svanberg K. 2002. A class of globally convergent optimization methods based on conservative convex separable approximations. SIAM Journal on Optimization, 12(2): 555-573. [181] Sved G, Ginos Z. 1968. Structural optimization under multiple loading. International Journal of Mechanical Sciences, 10(10): 803-805.Sved G, Ginos Z. 1968. Structural optimization under multiple loading. International Journal of Mechanical Sciences, 10(10): 803-805. [182] Tran Q D, Shin D, Jang G W. 2024. Bayesian optimization-based topology optimization using moving morphable bars for flexible structure design problems. Engineering Structures, 300: 117103. doi: 10.1016/J.ENGSTRUCT.2023.117103Tran Q D, Shin D, Jang G W. 2024. Bayesian optimization-based topology optimization using moving morphable bars for flexible structure design problems. Engineering Structures, 300: 117103. doi: 10.1016/J.ENGSTRUCT.2023.117103 [183] Wall W A, Frenzel M A, Cyron C. 2008. Isogeometric structural shape optimization. Computer Methods in Applied Mechanics and Engineering, 197(33-40): 2976-2988.Wall W A, Frenzel M A, Cyron C. 2008. Isogeometric structural shape optimization. Computer Methods in Applied Mechanics and Engineering, 197(33-40): 2976-2988. [184] Wang H, Wu J, Chen Y, et al. 2025. Design of novel non-periodic biomimetic bone scaffolds using the moving morphable components method. Materials & Design, 259: 114815. doi: 10.1016/J.MATDES.2025.114815Wang H, Wu J, Chen Y, et al. 2025. Design of novel non-periodic biomimetic bone scaffolds using the moving morphable components method. Materials & Design, 259: 114815. doi: 10.1016/J.MATDES.2025.114815 [185] Wang L, Shi D, Zhang B, et al. 2022. Real-time topology optimization based on deep learning for moving morphable components. Automation in Construction, 142: 104492. doi: 10.1016/J.AUTCON.2022.104492Wang L, Shi D, Zhang B, et al. 2022. Real-time topology optimization based on deep learning for moving morphable components. Automation in Construction, 142: 104492. doi: 10.1016/J.AUTCON.2022.104492 [186] Wang L, Shi D, Zhang B, et al. 2023. Deep learning driven real time topology optimization based on improved convolutional block attention (cba-U-net) model. Engineering Analysis with Boundary Elements, 147: 112-124. doi: 10.1016/j.enganabound.2022.11.034Wang L, Shi D, Zhang B, et al. 2023. Deep learning driven real time topology optimization based on improved convolutional block attention (cba-U-net) model. Engineering Analysis with Boundary Elements, 147: 112-124. doi: 10.1016/j.enganabound.2022.11.034 [187] Wang M Y, Wang X, Guo D. 2003. A level set method for structural topology optimization. Computer Methods in Applied Mechanics and Engineering, 192(1-2): 227-246.Wang M Y, Wang X, Guo D. 2003. A level set method for structural topology optimization. Computer Methods in Applied Mechanics and Engineering, 192(1-2): 227-246. [188] Wang R, Zhang X, Zhu B. 2019. Imposing minimum length scale in moving morphable component (MMC)-based topology optimization using an effective connection status (ECS) control method. Computer Methods in Applied Mechanics and Engineering, 351: 667-693. doi: 10.1016/j.cma.2019.04.007Wang R, Zhang X, Zhu B. 2019. Imposing minimum length scale in moving morphable component (MMC)-based topology optimization using an effective connection status (ECS) control method. Computer Methods in Applied Mechanics and Engineering, 351: 667-693. doi: 10.1016/j.cma.2019.04.007 [189] Wang R, Zhang X, Zhu B. 2021. A projective transformation-based topology optimization using moving morphable components. Computer Methods in Applied Mechanics and Engineering, 376: 113646.Wang R, Zhang X, Zhu B. 2021. A projective transformation-based topology optimization using moving morphable components. Computer Methods in Applied Mechanics and Engineering, 376: 113646. [190] Wang R, Zhang X, Zhu B, et al. 2022. Hybrid explicit–implicit topology optimization method for the integrated layout design of compliant mechanisms and actuators. Mechanism and Machine Theory, 171: 104750. doi: 10.1016/j.mechmachtheory.2022.104750Wang R, Zhang X, Zhu B, et al. 2022. Hybrid explicit–implicit topology optimization method for the integrated layout design of compliant mechanisms and actuators. Mechanism and Machine Theory, 171: 104750. doi: 10.1016/j.mechmachtheory.2022.104750 [191] Wang R, Zhu B, Zhang X, et al. 2025. Integrated design of structures and supports using a hybrid explicit–implicit topology optimization method. Computer Methods in Applied Mechanics and Engineering, 444: 118087. doi: 10.1016/J.CMA.2025.118087Wang R, Zhu B, Zhang X, et al. 2025. Integrated design of structures and supports using a hybrid explicit–implicit topology optimization method. Computer Methods in Applied Mechanics and Engineering, 444: 118087. doi: 10.1016/J.CMA.2025.118087 [192] Wang X, Long K, Hoang V N, et al. 2018. An explicit optimization model for integrated layout design of planar multi-component systems using moving morphable bars. Computer Methods in Applied Mechanics and Engineering, 342: 46-70. doi: 10.1016/j.cma.2018.07.032Wang X, Long K, Hoang V N, et al. 2018. An explicit optimization model for integrated layout design of planar multi-component systems using moving morphable bars. Computer Methods in Applied Mechanics and Engineering, 342: 46-70. doi: 10.1016/j.cma.2018.07.032 [193] Wang Y, Benson D J. 2016. Isogeometric analysis for parameterized LSM-based structural topology optimization. Computational Mechanics, 57(1): 19-35. doi: 10.1007/s00158-017-1672-xWang Y, Benson D J. 2016. Isogeometric analysis for parameterized LSM-based structural topology optimization. Computational Mechanics, 57(1): 19-35. doi: 10.1007/s00158-017-1672-x [194] Wang Y, Wang H, Chen W, et al. 2025. Topology optimization design of specific low-frequency band sound absorption metasurface. Thin Walled Structures, 217: 113856.Wang Y, Wang H, Chen W, et al. 2025. Topology optimization design of specific low-frequency band sound absorption metasurface. Thin Walled Structures, 217: 113856. [195] Wang Y, Zhang H, Du Z, et al. 2022. Design of a stiffened space membrane structure using explicit topology optimization. Journal of Mechanical Design, 144(12): 121701. doi: 10.1115/1.4055375Wang Y, Zhang H, Du Z, et al. 2022. Design of a stiffened space membrane structure using explicit topology optimization. Journal of Mechanical Design, 144(12): 121701. doi: 10.1115/1.4055375 [196] Ware T H, McConney M E, Wie J J, et al. 2015. Voxelated liquid crystal elastomers. Science, 347(6225): 982-984.Ware T H, McConney M E, Wie J J, et al. 2015. Voxelated liquid crystal elastomers. Science, 347(6225): 982-984. [197] Wein F, Dunning P D, Norato J A. 2020. A review on feature-mapping methods for structural optimization. Structural and Multidisciplinary Optimization, 62(4): 1597-1638. doi: 10.1007/s00158-020-02649-6Wein F, Dunning P D, Norato J A. 2020. A review on feature-mapping methods for structural optimization. Structural and Multidisciplinary Optimization, 62(4): 1597-1638. doi: 10.1007/s00158-020-02649-6 [198] Weiss B M, Hamel J M, Ganter M A, et al. 2021. Data-driven additive manufacturing constraints for topology optimization. Journal of Manufacturing Science and Engineering, 143(2): 21001.Weiss B M, Hamel J M, Ganter M A, et al. 2021. Data-driven additive manufacturing constraints for topology optimization. Journal of Manufacturing Science and Engineering, 143(2): 21001. [199] Wu Q, He J, Chen W, et al. 2023. Topology optimization of phononic crystal with prescribed band gaps. Computer Methods in Applied Mechanics and Engineering, 412: 116071.Wu Q, He J, Chen W, et al. 2023. Topology optimization of phononic crystal with prescribed band gaps. Computer Methods in Applied Mechanics and Engineering, 412: 116071. [200] Xian Y, Rosen D W. 2020. Morphable components topology optimization for additive manufacturing. Structural and Multidisciplinary Optimization, 62(1): 19-39. doi: 10.1007/s00158-019-02466-6Xian Y, Rosen D W. 2020. Morphable components topology optimization for additive manufacturing. Structural and Multidisciplinary Optimization, 62(1): 19-39. doi: 10.1007/s00158-019-02466-6 [201] Xie X, Wang S, Xu M, et al. 2018. A new isogeometric topology optimization using moving morphable components based on R-functions and collocation schemes. Computer Methods in Applied Mechanics and Engineering, 339: 61-90. doi: 10.1016/j.cma.2018.04.048Xie X, Wang S, Xu M, et al. 2018. A new isogeometric topology optimization using moving morphable components based on R-functions and collocation schemes. Computer Methods in Applied Mechanics and Engineering, 339: 61-90. doi: 10.1016/j.cma.2018.04.048 [202] Xie X, Wang S, Xu M, et al. 2020a. A hierarchical spline based isogeometric topology optimization using moving morphable components. Computer Methods in Applied Mechanics and Engineering, 360: 112696. doi: 10.1016/j.cma.2019.112696Xie X, Wang S, Xu M, et al. 2020a. A hierarchical spline based isogeometric topology optimization using moving morphable components. Computer Methods in Applied Mechanics and Engineering, 360: 112696. doi: 10.1016/j.cma.2019.112696 [203] Xie X, Wang S, Ye M, et al. 2020b. Isogeometric topology optimization based on energy penalization for symmetric structure. Frontiers of Mechanical Engineering, 15(1): 100-122.Xie X, Wang S, Ye M, et al. 2020b. Isogeometric topology optimization based on energy penalization for symmetric structure. Frontiers of Mechanical Engineering, 15(1): 100-122. [204] Xie X, Yang A, Wang Y, et al. 2021. Fully adaptive isogeometric topology optimization using MMC based on truncated hierarchical B-splines. Structural and Multidisciplinary Optimization, 63(6): 2869-2887.Xie X, Yang A, Wang Y, et al. 2021. Fully adaptive isogeometric topology optimization using MMC based on truncated hierarchical B-splines. Structural and Multidisciplinary Optimization, 63(6): 2869-2887. [205] Xie X, Zheng H, Jonckheere S, et al. 2019. Explicit and efficient topology optimization of frequency-dependent damping patches using moving morphable components and reduced-order models. Computer Methods in Applied Mechanics and Engineering, 355: 591-613.Xie X, Zheng H, Jonckheere S, et al. 2019. Explicit and efficient topology optimization of frequency-dependent damping patches using moving morphable components and reduced-order models. Computer Methods in Applied Mechanics and Engineering, 355: 591-613. [206] Xie Y M, Steven G P. 1993. A simple evolutionary procedure for structural optimization. Computers & Structures, 49(5): 885-896. doi: 10.1016/j.finel.2007.09.002Xie Y M, Steven G P. 1993. A simple evolutionary procedure for structural optimization. Computers & Structures, 49(5): 885-896. doi: 10.1016/j.finel.2007.09.002 [207] Xie Y M, Steven G P. 1997. Basic evolutionary structural optimization[M]//Xie Y M, Steven G P. Evolutionary Structural Optimization. London: Springer London: 12-29.Xie Y M, Steven G P. 1997. Basic evolutionary structural optimization[M]//Xie Y M, Steven G P. Evolutionary Structural Optimization. London: Springer London: 12-29. [208] Xu J, He C, Liu C, et al. 2025. Explicit topology optimization based on the joint‐driven moving morphable components. International Journal for Numerical Methods in Engineering, 126(1): e7650. doi: 10.1002/nme.7650Xu J, He C, Liu C, et al. 2025. Explicit topology optimization based on the joint‐driven moving morphable components. International Journal for Numerical Methods in Engineering, 126(1): e7650. doi: 10.1002/nme.7650 [209] Xu K, Li T, Guan G, et al. 2022. Optimization design of an embedded multi-cell thin-walled energy absorption structures with local surface nanocrystallization. Computer Modeling in Engineering and Sciences, 130(2): 987-1002.Xu K, Li T, Guan G, et al. 2022. Optimization design of an embedded multi-cell thin-walled energy absorption structures with local surface nanocrystallization. Computer Modeling in Engineering and Sciences, 130(2): 987-1002. [210] Xu W, Liu C, Guo Y, et al. 2023. Graded infill lattice structures design based on the moving morphable component method and partitioned coordinate mapping technique. Composite Structures, 326: 117613. doi: 10.1016/j.compstruct.2023.117613Xu W, Liu C, Guo Y, et al. 2023. Graded infill lattice structures design based on the moving morphable component method and partitioned coordinate mapping technique. Composite Structures, 326: 117613. doi: 10.1016/j.compstruct.2023.117613 [211] Xu W, Liu C, Guo Y, et al. 2025. Problem-independent machine learning (PIML) enhanced 3D lattice composite structures optimization via moving morphable components approach. Composite Structures, 369: 119330.Xu W, Liu C, Guo Y, et al. 2025. Problem-independent machine learning (PIML) enhanced 3D lattice composite structures optimization via moving morphable components approach. Composite Structures, 369: 119330. [212] Xue R, Li R, Du Z, et al. 2017. Kirigami pattern design of mechanically driven formation of complex 3D structures through topology optimization. Extreme Mechanics Letters, 15: 139-144.Xue R, Li R, Du Z, et al. 2017. Kirigami pattern design of mechanically driven formation of complex 3D structures through topology optimization. Extreme Mechanics Letters, 15: 139-144. [213] Xue R, Liu C, Zhang W, et al. 2019. Explicit structural topology optimization under finite deformation via moving morphable void (MMV) approach. Computer Methods in Applied Mechanics and Engineering, 344: 798-818.Xue R, Liu C, Zhang W, et al. 2019. Explicit structural topology optimization under finite deformation via moving morphable void (MMV) approach. Computer Methods in Applied Mechanics and Engineering, 344: 798-818. [214] Yamasaki S, Yamada T, Matsumoto T. 2013. An immersed boundary element method for level‐set based topology optimization. International Journal for Numerical Methods in Engineering, 93(9): 960-988.Yamasaki S, Yamada T, Matsumoto T. 2013. An immersed boundary element method for level‐set based topology optimization. International Journal for Numerical Methods in Engineering, 93(9): 960-988. [215] Yan J, Xu Q, Fan Z, et al. 2021. Thermoelastic structural topology optimization based on moving morphable components framework. Computer Modeling in Engineering and Sciences, 128(3): 1179-1196. doi: 10.32604/cmes.2021.016950Yan J, Xu Q, Fan Z, et al. 2021. Thermoelastic structural topology optimization based on moving morphable components framework. Computer Modeling in Engineering and Sciences, 128(3): 1179-1196. doi: 10.32604/cmes.2021.016950 [216] Yan J, Xu Q, Fan Z, et al. 2023. A study on topology optimization of heat dissipation structures with different objective functions based on an explicit moving morphable components method. Engineering Optimization, 55(8): 1336-1351. doi: 10.1080/0305215X.2022.2086236Yan J, Xu Q, Fan Z, et al. 2023. A study on topology optimization of heat dissipation structures with different objective functions based on an explicit moving morphable components method. Engineering Optimization, 55(8): 1336-1351. doi: 10.1080/0305215X.2022.2086236 [217] Yang H, Huang J. 2020. An explicit structural topology optimization method based on the descriptions of areas. Structural and Multidisciplinary Optimization, 61(3): 1123-1156. doi: 10.1007/s00158-019-02414-4Yang H, Huang J. 2020. An explicit structural topology optimization method based on the descriptions of areas. Structural and Multidisciplinary Optimization, 61(3): 1123-1156. doi: 10.1007/s00158-019-02414-4 [218] Yang X Y, Xie Y M, Steven G P, et al. 1999. Bidirectional evolutionary method for stiffness optimization. AIAA Journal, 37(11): 1483-1488. doi: 10.1016/J.ISTRUC.2026.111535Yang X Y, Xie Y M, Steven G P, et al. 1999. Bidirectional evolutionary method for stiffness optimization. AIAA Journal, 37(11): 1483-1488. doi: 10.1016/J.ISTRUC.2026.111535 [219] Yu M, Ruan S, Wang X, et al. 2019. Topology optimization of thermal–fluid problem using the MMC-based approach. Structural and Multidisciplinary Optimization, 60(1): 151-165. doi: 10.1007/s00158-019-02206-wYu M, Ruan S, Wang X, et al. 2019. Topology optimization of thermal–fluid problem using the MMC-based approach. Structural and Multidisciplinary Optimization, 60(1): 151-165. doi: 10.1007/s00158-019-02206-w [220] Zegard T, Paulino G H. 2014. GRAND — ground structure based topology optimization for arbitrary 2D domains using MATLAB. Structural and Multidisciplinary Optimization, 50(5): 861-882. doi: 10.1007/s00158-014-1085-zZegard T, Paulino G H. 2014. GRAND — ground structure based topology optimization for arbitrary 2D domains using MATLAB. Structural and Multidisciplinary Optimization, 50(5): 861-882. doi: 10.1007/s00158-014-1085-z [221] Zegard T, Paulino G H. 2015. GRAND3 — ground structure based topology optimization for arbitrary 3D domains using MATLAB. Structural and Multidisciplinary Optimization, 52(6): 1161-1184.Zegard T, Paulino G H. 2015. GRAND3 — ground structure based topology optimization for arbitrary 3D domains using MATLAB. Structural and Multidisciplinary Optimization, 52(6): 1161-1184. [222] Zhang L, Huang M, Liu C, et al. 2024. Problem-independent machine learning-enhanced structural topology optimization of complex design domains based on isoparametric elements. Extreme Mechanics Letters, 72: 102237.Zhang L, Huang M, Liu C, et al. 2024. Problem-independent machine learning-enhanced structural topology optimization of complex design domains based on isoparametric elements. Extreme Mechanics Letters, 72: 102237. [223] Zhang S, Da D, Wang Y. 2022. TPMS-infill MMC-based topology optimization considering overlapped component property. International Journal of Mechanical Sciences, 235: 107713. doi: 10.1016/j.ijmecsci.2022.107713Zhang S, Da D, Wang Y. 2022. TPMS-infill MMC-based topology optimization considering overlapped component property. International Journal of Mechanical Sciences, 235: 107713. doi: 10.1016/j.ijmecsci.2022.107713 [224] Zhang W, Chen J, Zhu X, et al. 2017a. Explicit three dimensional topology optimization via moving morphable void (MMV) approach. Computer Methods in Applied Mechanics and Engineering, 322: 590-614. doi: 10.1016/j.cma.2017.05.002Zhang W, Chen J, Zhu X, et al. 2017a. Explicit three dimensional topology optimization via moving morphable void (MMV) approach. Computer Methods in Applied Mechanics and Engineering, 322: 590-614. doi: 10.1016/j.cma.2017.05.002 [225] Zhang W, Jiang S, Liu C, et al. 2020a. Stress-related topology optimization of shell structures using IGA/TSA-based moving morphable void (MMV) approach. Computer Methods in Applied Mechanics and Engineering, 366: 113036.Zhang W, Jiang S, Liu C, et al. 2020a. Stress-related topology optimization of shell structures using IGA/TSA-based moving morphable void (MMV) approach. Computer Methods in Applied Mechanics and Engineering, 366: 113036. [226] Zhang W, Lai Q, Guo X, et al. 2024a. Topology optimization for the design of manufacturable piezoelectric energy harvesters using dual-moving morphable component method. Journal of Mechanical Design, 146(12): 121701. doi: 10.1115/1.4065610Zhang W, Lai Q, Guo X, et al. 2024a. Topology optimization for the design of manufacturable piezoelectric energy harvesters using dual-moving morphable component method. Journal of Mechanical Design, 146(12): 121701. doi: 10.1115/1.4065610 [227] Zhang W, Li D, Kang P, et al. 2020b. Explicit topology optimization using IGA-based moving morphable void (MMV) approach. Computer Methods in Applied Mechanics and Engineering, 360: 112685.Zhang W, Li D, Kang P, et al. 2020b. Explicit topology optimization using IGA-based moving morphable void (MMV) approach. Computer Methods in Applied Mechanics and Engineering, 360: 112685. [228] Zhang W, Li D, Zhang J, et al. 2016a. Minimum length scale control in structural topology optimization based on the moving morphable components (MMC) approach. Computer Methods in Applied Mechanics and Engineering, 311: 327-355. doi: 10.1016/j.cma.2016.08.022Zhang W, Li D, Zhang J, et al. 2016a. Minimum length scale control in structural topology optimization based on the moving morphable components (MMC) approach. Computer Methods in Applied Mechanics and Engineering, 311: 327-355. doi: 10.1016/j.cma.2016.08.022 [229] Zhang W, Li D, Zhou J, et al. 2018a. A moving morphable void (MMV)-based explicit approach for topology optimization considering stress constraints. Computer Methods in Applied Mechanics and Engineering, 334: 381-413. doi: 10.1016/j.cma.2018.01.050Zhang W, Li D, Zhou J, et al. 2018a. A moving morphable void (MMV)-based explicit approach for topology optimization considering stress constraints. Computer Methods in Applied Mechanics and Engineering, 334: 381-413. doi: 10.1016/j.cma.2018.01.050 [230] Zhang W, Liu Y, Du Z, et al. 2018b. A moving morphable component based topology optimization approach for rib-stiffened structures considering buckling constraints. Journal of Mechanical Design, 140(11): 111404. doi: 10.1115/1.4041052Zhang W, Liu Y, Du Z, et al. 2018b. A moving morphable component based topology optimization approach for rib-stiffened structures considering buckling constraints. Journal of Mechanical Design, 140(11): 111404. doi: 10.1115/1.4041052 [231] Zhang W, Meng Y, Zhang C, et al. 2025a. Explicit topology optimization of graded lattice flexoelectric energy harvester under finite deformation. Composite Structures, 370: 119400. doi: 10.1016/j.compstruct.2025.119400Zhang W, Meng Y, Zhang C, et al. 2025a. Explicit topology optimization of graded lattice flexoelectric energy harvester under finite deformation. Composite Structures, 370: 119400. doi: 10.1016/j.compstruct.2025.119400 [232] Zhang W, Song J, Zhou J, et al. 2018c. Topology optimization with multiple materials via moving morphable component (MMC) method. International Journal for Numerical Methods in Engineering, 113(11): 1653-1675.Zhang W, Song J, Zhou J, et al. 2018c. Topology optimization with multiple materials via moving morphable component (MMC) method. International Journal for Numerical Methods in Engineering, 113(11): 1653-1675. [233] Zhang W, Yan S, Wang B, et al. 2025b. Optimization of bead-stiffened shell structures with manufacturability constraints via moving morphable bead (MMB) approach. Structural and Multidisciplinary Optimization, 68(8): 151. doi: 10.1007/s00158-025-04062-3Zhang W, Yan S, Wang B, et al. 2025b. Optimization of bead-stiffened shell structures with manufacturability constraints via moving morphable bead (MMB) approach. Structural and Multidisciplinary Optimization, 68(8): 151. doi: 10.1007/s00158-025-04062-3 [234] Zhang W, Yang W, Zhou J, et al. 2017b. Structural topology optimization through explicit boundary evolution. Journal of Applied Mechanics, 84(1): 11011.Zhang W, Yang W, Zhou J, et al. 2017b. Structural topology optimization through explicit boundary evolution. Journal of Applied Mechanics, 84(1): 11011. [235] Zhang W, Yuan J, Zhang J, et al. 2016b. A new topology optimization approach based on moving morphable components (MMC) and the ersatz material model. Structural and Multidisciplinary Optimization, 53(6): 1243-1260.Zhang W, Yuan J, Zhang J, et al. 2016b. A new topology optimization approach based on moving morphable components (MMC) and the ersatz material model. Structural and Multidisciplinary Optimization, 53(6): 1243-1260. [236] Zhang W, Zhang J, Guo X, 2016c. Lagrangian description based topology optimization—a revival of shape optimization[J]. Journal of Applied Mechanics, 83(4): 41010.Zhang W, Zhang J, Guo X, 2016c. Lagrangian description based topology optimization—a revival of shape optimization[J]. Journal of Applied Mechanics, 83(4): 41010. [237] Zhang W, Zhang S, Youn S K, et al. 2024b. Non-parametric geometry patching technique for MMC topology optimization. Structural and Multidisciplinary Optimization, 67(5): 77.Zhang W, Zhang S, Youn S K, et al. 2024b. Non-parametric geometry patching technique for MMC topology optimization. Structural and Multidisciplinary Optimization, 67(5): 77. [238] Zhang W, Zhou J, Zhu Y, et al. 2017c. Structural complexity control in topology optimization via moving morphable component (MMC) approach. Structural and Multidisciplinary Optimization, 56(3): 535-552. doi: 10.1007/s00158-017-1736-yZhang W, Zhou J, Zhu Y, et al. 2017c. Structural complexity control in topology optimization via moving morphable component (MMC) approach. Structural and Multidisciplinary Optimization, 56(3): 535-552. doi: 10.1007/s00158-017-1736-y [239] Zhang W, Zhou Y, Jiu L, et al. 2019. Feature-driven method for structural topology optimization. SCIENTIA SINICA Technologica, 49(10): 1177-1185.Zhang W, Zhou Y, Jiu L, et al. 2019. Feature-driven method for structural topology optimization. SCIENTIA SINICA Technologica, 49(10): 1177-1185. [240] Zhang X. 2018. Topology optimization of compliant mechanisms[M]. Singapore: Springer Nature.Zhang X. 2018. Topology optimization of compliant mechanisms[M]. Singapore: Springer Nature. [241] Zhang X, Liu C, Zeng H, et al. 2023. Moving morphable components structural optimum approach considering wire arc additive manufacturing constraint and its application in satellite. Thin Walled Structures, 192: 111177. doi: 10.1016/j.tws.2023.111177Zhang X, Liu C, Zeng H, et al. 2023. Moving morphable components structural optimum approach considering wire arc additive manufacturing constraint and its application in satellite. Thin Walled Structures, 192: 111177. doi: 10.1016/j.tws.2023.111177 [242] Zhang X S, Chi H, Paulino G H. 2020. Adaptive multi-material topology optimization with hyperelastic materials under large deformations: A virtual element approach. Computer Methods in Applied Mechanics and Engineering, 370: 112976. doi: 10.1016/j.cma.2020.112976Zhang X S, Chi H, Paulino G H. 2020. Adaptive multi-material topology optimization with hyperelastic materials under large deformations: A virtual element approach. Computer Methods in Applied Mechanics and Engineering, 370: 112976. doi: 10.1016/j.cma.2020.112976 [243] Zhao J, Zhang M, Zhu Y, et al. 2021. Concurrent optimization of the internal flow channel, inlets, and outlets in forced convection heat sinks. Structural and Multidisciplinary Optimization, 63(1): 121-136. doi: 10.1007/s00158-020-02670-9Zhao J, Zhang M, Zhu Y, et al. 2021. Concurrent optimization of the internal flow channel, inlets, and outlets in forced convection heat sinks. Structural and Multidisciplinary Optimization, 63(1): 121-136. doi: 10.1007/s00158-020-02670-9 [244] Zheng R, Kim C. 2020. An enhanced topology optimization approach based on the combined MMC and NURBS-curve boundaries. International Journal of Precision Engineering and Manufacturing, 21(8): 1529-1538.Zheng R, Kim C. 2020. An enhanced topology optimization approach based on the combined MMC and NURBS-curve boundaries. International Journal of Precision Engineering and Manufacturing, 21(8): 1529-1538. [245] Zheng S, Fan H, Zhang Z, et al. 2021. Accurate and real-time structural topology prediction driven by deep learning under moving morphable component-based framework. Applied Mathematical Modelling, 97: 522-535. doi: 10.1016/j.apm.2021.04.009Zheng S, Fan H, Zhang Z, et al. 2021. Accurate and real-time structural topology prediction driven by deep learning under moving morphable component-based framework. Applied Mathematical Modelling, 97: 522-535. doi: 10.1016/j.apm.2021.04.009 [246] Zhou J, Zhao G, Zeng Y, et al. 2024. A novel topology optimization method of plate structure based on moving morphable components and grid structure. Structural and Multidisciplinary Optimization, 67(1): 8.Zhou J, Zhao G, Zeng Y, et al. 2024. A novel topology optimization method of plate structure based on moving morphable components and grid structure. Structural and Multidisciplinary Optimization, 67(1): 8. [247] Zhou Q, Shen W, Wang J, et al. 2018. Ameba: A new topology optimization tool for architectural design. Proceedings of IASS Annual Symposia, 2018(19): 1-8.Zhou Q, Shen W, Wang J, et al. 2018. Ameba: A new topology optimization tool for architectural design. Proceedings of IASS Annual Symposia, 2018(19): 1-8. [248] Zhou Y, Zhang W, Zhu J, et al. 2016. Feature-driven topology optimization method with signed distance function. Computer Methods in Applied Mechanics and Engineering, 310: 1-32. doi: 10.1016/j.cma.2016.06.027Zhou Y, Zhang W, Zhu J, et al. 2016. Feature-driven topology optimization method with signed distance function. Computer Methods in Applied Mechanics and Engineering, 310: 1-32. doi: 10.1016/j.cma.2016.06.027 [249] Zhu B, Chen Q, Wang R, et al. 2018. Structural topology optimization using a moving morphable component-based method considering geometrical nonlinearity. Journal of Mechanical Design, 140(8): 81403. doi: 10.1115/1.4040547Zhu B, Chen Q, Wang R, et al. 2018. Structural topology optimization using a moving morphable component-based method considering geometrical nonlinearity. Journal of Mechanical Design, 140(8): 81403. doi: 10.1115/1.4040547 [250] Zhu B, Wang R, Wang N, et al. 2021a. Explicit structural topology optimization using moving wide bezier components with constrained ends. Structural and Multidisciplinary Optimization, 64(1): 53-70. doi: 10.1007/s00158-021-02853-yZhu B, Wang R, Wang N, et al. 2021a. Explicit structural topology optimization using moving wide bezier components with constrained ends. Structural and Multidisciplinary Optimization, 64(1): 53-70. doi: 10.1007/s00158-021-02853-y [251] Zhu B, Wang R, Zhang H, et al. 2022. An approach for geometrically nonlinear topology optimization using moving wide-bézier components with constrained ends. Journal of Mechanical Design, 144(1): 11704.Zhu B, Wang R, Zhang H, et al. 2022. An approach for geometrically nonlinear topology optimization using moving wide-bézier components with constrained ends. Journal of Mechanical Design, 144(1): 11704. [252] Zhu B, Zhang X, Li Hai, et al. 2021b. An 89-line code for geometrically nonlinear topology optimization written in FreeFEM. Structural and Multidisciplinary Optimization, 63(2): 1015-1027. doi: 10.1007/s00158-020-02733-xZhu B, Zhang X, Li Hai, et al. 2021b. An 89-line code for geometrically nonlinear topology optimization written in FreeFEM. Structural and Multidisciplinary Optimization, 63(2): 1015-1027. doi: 10.1007/s00158-020-02733-x [253] Zienkiewicz O C, Taylor R L, Zhu J Z. 2005. The finite element method: Its basis and fundamentals[M]. Elsevier.Zienkiewicz O C, Taylor R L, Zhu J Z. 2005. The finite element method: Its basis and fundamentals[M]. Elsevier. -
